Arbitrary waveform generator WS8102

functionpulsedual-channel

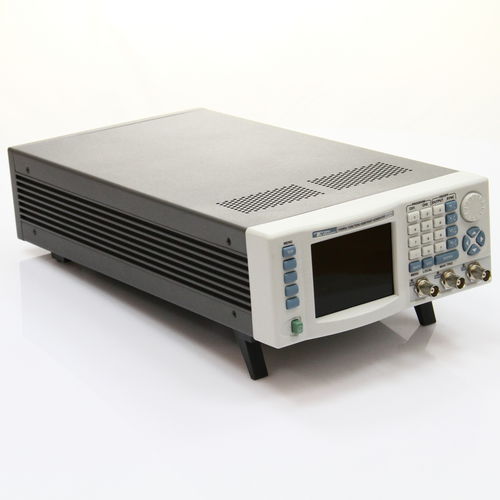

The Tabor WS8102 is a Dual Channel Arbitrary / Function Generator with a 100MHz bandwidth and the functionality of a function generator, arbitrary generator and pulse generator all in one easy to use high performance unit. It is a compact stand alone bench top unit that will satisfy all of the industry and education standard testing needs for years to come. Dual-channel Arbitrary Function Generator 100MHz sine and 62.5MHz square waves Triangle, ramp, sinc, gaussian, exponential, noise, pulse generation with variable edge, and DC waveforms 16 Vp-p into 50Ω, 32Vp-p into open circuit 16 Bit, 250 MS/s, 512k points arbitrary waveforms Linear & logarithmic sweeps Continuous, triggered, gate and burst AM, FM, FSK, and PSK modulation High resolution 3.8" LCD, color display Ethernet, USB and GPIB interfaces Free ArbConnection software, IVI and MATLAB drivers
