Signal amplifier 9250

differential2-channelwide-band

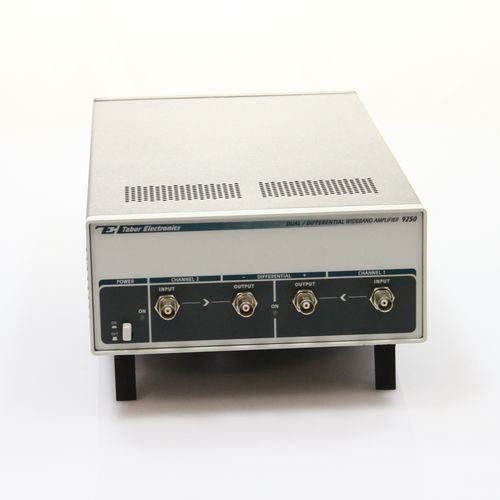

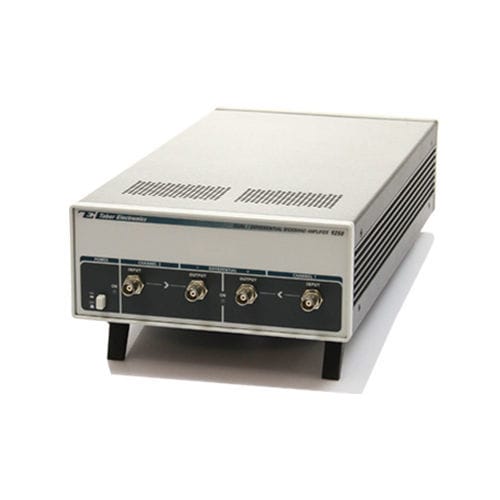

The 9250 is a bench-top, 2U, half 19” rack size, fully metal case dual channel amplifier. The instrument can be configured to be used as two, single-ended independent channels, or as a one input with two differential outputs. The amplifier case was designed to stack on top or below other Tabor products. It also can be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application. Large signal bandwidth to 15 MHz Small signal bandwidth to 30 MHz High amplitude to 40Vp-p (into high impedance) Features Input Characteristics The inputs to the amplifiers be configured to match different source impedance such as 50Ω, 75Ω, or 1MΩ and the outputs can be configured to match different load impedances such as 50Ω, 75Ω, or 600Ω. There are three inputs for each channel: Output Characteristics The outputs are located on the front panel. There are two outputs, one for each channel. When the 9250 is configured as two separate amplifiers, the outputs generate amplified signals within the range of 40Vp-p into open circuit or 20Vp-p into matching load impedance. The bandwidth of the outputs is around 20MHz for large signals. Small signal bandwidth can reach 50MHz. Instrument Configuration The 9250 can be configured as a differential amplifier. In this case, the channel 2 input is disabled and channel 1 input is amplified and distributed differentially to both outputs.
