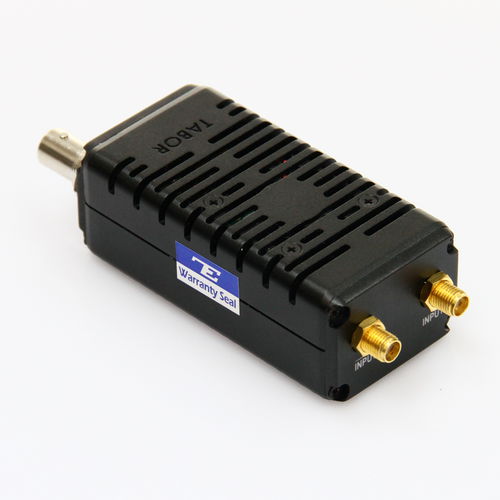

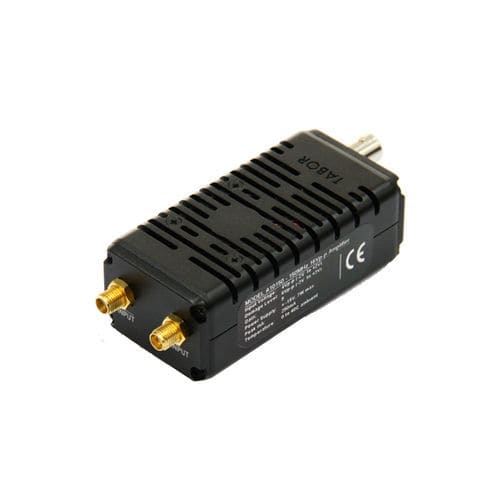

Signal amplifier A10160

single-channelhigh-current

Model A10160 is an ultra-small footprint, wideband, DC coupled amplifier designed for high frequency, high current, signal amplification. With a high bandwidth of 45MHz, 34Vp-p into 50 ohms and up to 10W output power, the A10160 is the ideal complimentary amplifier to any signal source that needs a supporting power boost for demanding applications. Fast transition time of <10ns Small footprint, all metal case Features Enhancing Performance The A10160 was designed as a “Snap-On” accessory for the Tabor WaveXciter series and models WS8351/2, both having a maximum amplitude of 4Vp-p, which can be limiting for some applications, requiring higher voltage and current to drive their UUT. Combined with the A10160 the WX and WS models will now offer even higher abilities to solve demanding application requiring up to 45MHz signals at 34Vp-p into 50 ohms loads, without compromising their signal integrity. High Current High Power With a peak output current of 1A and 750mA continuous the A10160 enables a continuous power output of 7.5W, and a peak output power of up to 10W, making it ideal for various pulse applications. Cost Effective Versatile Solution While the A10160 was designed with the Tabor units in mind, it can be used as a standalone amplifier for any signal source. The A10160 offers a compatible, compact and cost effective solution for extending any signal source’s power performance. Optional Configurations The A10160’s standard configuration enables a maximum output voltage of 34Vp-p into 50 ohms with a gain of x10.
