Signal amplifier 9160

single-channelrack-mountwide-band

Overview

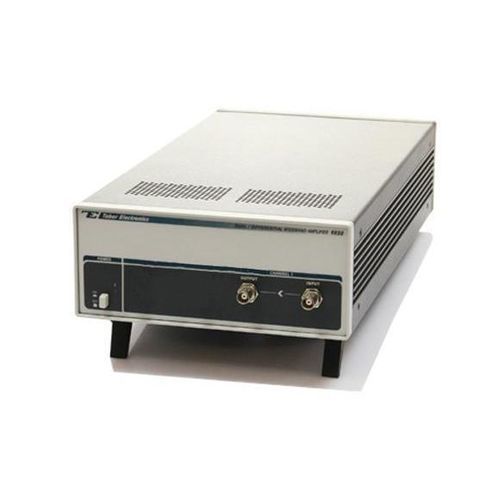

The 9160A is a bench-top, DC-coupled single-channel wideband amplifier in a 2U half 19-inch rack form factor. It delivers high-voltage and high-current output suitable for demanding laboratory and industrial signal‑conditioning tasks.

Key Features

• 45 MHz typical bandwidth
• Up to 34 Vp-p into 50 Ω (standard configuration)
• Peak output current up to 1 A; continuous output power up to 10 W
• Fast transition time < 10 ns
• Low distortion wideband amplification
• Customizable gain, input impedance and output configuration

Performance
The amplifier provides a high amplitude output with stable frequency response across 45 MHz. Peak current capability supports pulse and continuous applications requiring both voltage and current drive.

Instrument Configuration
Standard configuration: gain x10, 34 Vp-p into 50 Ω. Optional fixed gains x15 and x20 are available (note: bandwidth may decrease at higher fixed gains). Coupling selectable DC or AC.

Outputs
Front-panel outputs deliver the amplified signal into the matched load. Selectable output configurations include two separated channels or a single channel with differential outputs (switch-selectable), depending on ordering option.

Inputs
Inputs per channel include front-panel main input, rear auxiliary summing input, and rear DC offset input. Input impedance configurable to 50 Ω, 75 Ω or 1 MΩ to match source requirements.

Target Applications
Designed for piezo-electronics, transducer characterization, MEMS testing, scientific wideband measurements and general electronics requiring combined high voltage and high current amplification.

Ordering & Options

• Model example: 9160-10-50-D-S — 34 Vp-p single-channel amplifier
• Gain options: x10 (standard), x15, x20 (fixed)
• Input impedance: 50, 75, 1M
• Coupling: D = DC, A = AC
• Output configuration: S = two separated channels, D = single channel differential

Accessories

• 19" single rack mounting kit
• 19" dual rack mounting kit
• Professional carry case

Related Documentation
Datasheets, brochures and application notes are available for download on the product page.

Technical specifications

• Model: 9160A (single-channel wideband amplifier)
• Bandwidth: 45 MHz (typical)
• Maximum amplitude: 34 Vp-p into 50 Ω (standard)
• Maximum output current: peak up to 1 A
• Continuous output power: up to 10 W
• Transition time: < 10 ns
• Distortion: low (manufacturer specification)
• Input impedance options: 50 Ω, 75 Ω, 1 MΩ
• Coupling options: DC or AC
• Output configuration: selectable S (two separated channels) or D (single channel differential)
• Inputs per channel: main (front), auxiliary (rear), DC offset (rear)
• Form factor: bench-top, 2U, half 19-inch rack, full metal case
• Standard gain: x10 (other fixed gains available)
