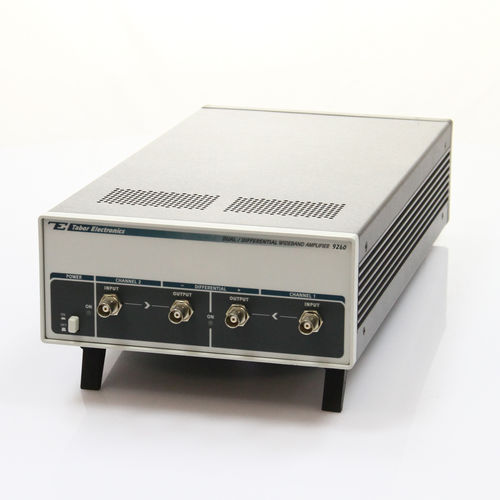

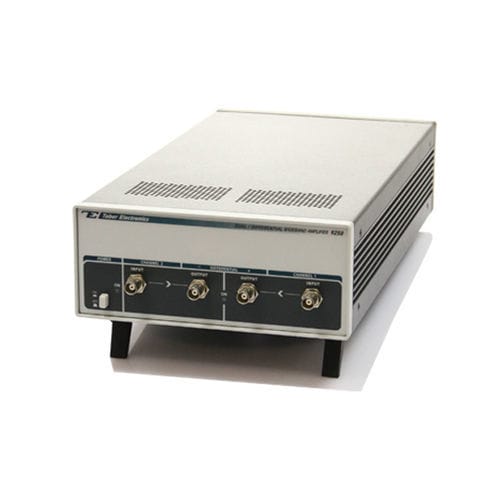

Signal amplifier 9260

differential2-channelcurrent output

The 9260 is a bench-top, 2U, half 19” rack size, fully metal case, dual channel DC coupled wideband amplifier designed for high frequency, high current, signal amplification. With a high bandwidth of 45MHz, 34Vp-p into 50 ohms and up to 10W output power, the 9260A is the ideal complimentary amplifier to any signal source that needs a supporting power boost for demanding applications. 45MHz bandwidth Fast transition time of <10ns Low distortion Features High Current High Power With a peak output current of 1A the 9260A enables a continuous power output of up to 10W, making it ideal for various pulse applications. Instrument Configuration The 9260A can be configured to be used as two, single-ended independent channels, or as a one input with two differential outputs. The 9260A’s standard configuration enables a maximum output voltage of 34Vp-p into 50 ohms with a gain of x10. Other custom gain, such as x15 can be ordered at the time of the purchase, enabling clients’ even wider variety of choices to solve their application. Output Characteristics The outputs are located on the front panel. There are two outputs, one for each channel. When the 9260A is configured as two separate amplifiers, the outputs generate amplified signals within the range of 34Vp-p into matching load impedance at approximately 45MHz bandwidth. Input Characteristics The inputs to the amplifiers can be configured to match different source impedances such as 50Ω, 75Ω, or 1MΩ. There are three inputs for each channel: 1. Main input. This input is located on the front panel and is normally used for signal inputs. 2. Auxiliary input.
