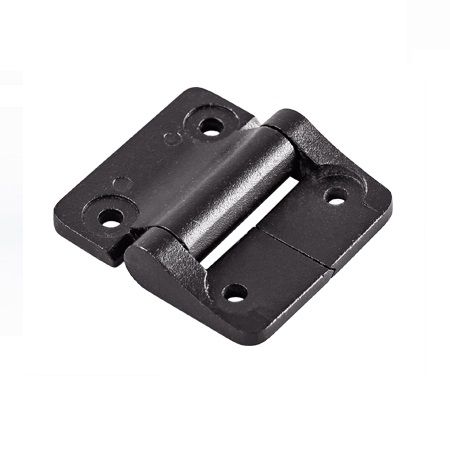

Constant-torque hinge HGZ-335-1R

zinc alloypowder coateddoor

Product overview
Constant-torque position-control hinges provide constant resistance throughout the entire range of motion, enabling users to position doors, display screens and other mounted components and hold them securely at any desired angle. They eliminate the need for secondary supports to maintain the position of hinged components.

Key features

• Constant torque and stable positioning across the full motion range
• Durability: 20,000 rotation cycles
• Maximum load: 200 N per piece
• Customizable torque options: 1.8 N·m, 2.3 N·m, 3.4 N·m

Material & Surface Treatment
Material (main body): Zinc Alloy (ZDC)
Surface treatment (main body): Black powder coating

Technical specifications

• Model: HGZ-335-1R
• Material (main body): Zinc Alloy (ZDC)
• Surface treatment (main body): Black powder coating
• Rotational durability: 20,000 cycles
• Maximum load: 200 N per piece
• Torque options (customizable): 1.8 N·m, 2.3 N·m, 3.4 N·m
• Typical applications: doors, display screens and other mounted components requiring secure angle positioning
