Plate heating element LCH series

finnedfanPTC

Product overview

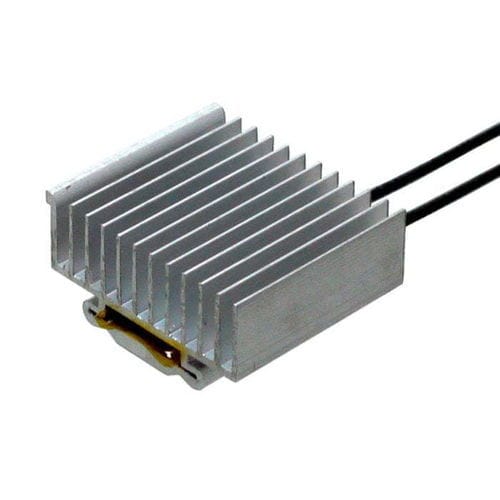

Taiwan KLC’s PTC Heat Conductors (LCH series, LCH-A ~ LCH-M) are self-regulating solid-state heating elements available in multiple form factors, lengths and mounting/wire-output options. Configurations include finned extrusions and PTC thermal plates; some types support optional fan assistance for increased heat transfer.

Features

• Self-regulating PTC characteristic for temperature control
• Wide power range (6 W to ~2000 W depending on model)
• Low electrical consumption relative to required heating application
• Low acoustic emission compared with fan-only heaters (fan optional)
• Available for a wide voltage range (typ. AC/DC 12 V–520/600 V depending on type)
• Aluminum finned housings (AL6061 / AL6063) and plate options
• Multiple wiring and mounting customizations available

New / Multi-stage heating
Multi-stage heating options provide two- or three-stage temperature settings within a single unit and can be applied across many LCH types (LCH-A to LCH-I). The LCH-M is a new PTC thermal plate family offering multiple standard surface-temperature options.

Applications
Designed for electronics temperature maintenance and medium-to-low heating tasks: PC motherboard thermal protection, medical and beauty devices, steam irons, moisture control, frost protection, air purifiers, health/therapy devices and similar applications.

General specifications

• Brand: KLC Corporation (KLC / Taiwan King Lung Chin PTC Co., Ltd.)
• Product family / models: LCH series (LCH-A ~ LCH-M)
• Power range: 6 W ~ 2000 W (model-dependent)
• Surface temperature (typ.): ~60 °C to ~240 °C (type-dependent)
• Voltage: AC/DC 12 V ~ 520 V (general); some types up to 600 V; custom voltages possible
• Exterior material: Aluminum AL6061 / AL6063 (finned types)
• Standard lead wire: 22 AWG, 210 mm (black) unless specified
• Options: multi-stage heating, fan-assisted variants, multiple wire outlets, connectors, fixture plates, three-phase outlets

Application notes

• PTC output (W) varies with heat-dissipation conditions: under low dissipation (no airflow) surface temperature may approach Curie temperature and power will fall; under high dissipation power increases to maintain regulation.
• Stated maximum power is under effective heat transmission (surface ~240 °C for many types). Typical delivered power depends on contact material, heat sink, dissipation area, ambient temperature and airflow (often 5%–80% of maximum; indirect water heating typically ~15%–60% of maximum).
• Customized models and tooling are available to meet special mechanical or electrical requirements (tooling cost may apply).
• Relative power example at lower surface temperature: Relative Power(@120 °C) ≈ Max Power × (120 °C – ambient) / (240 °C – ambient) — actual results depend on application conditions.

Dimensions and standard model types (selection)
Each LCH type has specific fin/profile geometry and available lengths. Typical type list: LCH-A, LCH-B, LCH-C, LCH-D, LCH-E, LCH-F, LCH-G, LCH-H, LCH-I, LCH-J (custom example), LCH-K (custom example), LCH-M (PTC thermal plate).

LCH-H ~ M type — key summary
Power range: 6 W ~ 2000 W
Typical dimensions (examples): LCH-H: 39.5 × 19.5 × L mm; LCH-IA: 55 × 28 × L mm; LCH-IB: 70 × 28.5 × L mm; LCH-M (example): 30 × 35 × L mm
Max surface temperature: typically up to ~220–240 °C (type dependent)
Voltage range: AC/DC 12 V ~ 600 V (type dependent)
Exterior: Aluminum AL6061 / 6063
Fan: optional for LCH-I, LCH-K, LCH-M to accelerate heat transfer

LCH-M type — selected models & standard lengths / temp options
Example models and lengths: LCH-MX1024 (L=60 mm), LCH-MX2048 (L=100 mm), LCH-MX3060 (L=150 mm), LCH-MX4072 (L=200 mm). Surface temperature options (examples): 230 °C ±20 °C, 200 °C ±20 °C, 170 °C ±20 °C, 110 °C ±20 °C, 90 °C ±20 °C.

Wire output & design options

• One-sided wire outlet (standard)
• Two-sided wire outlet
• Wire with connector
• Wire with female crimp and fixture holes (specify hole positions)
• Customized fixture holes or stainless-steel fixture plate
• Three-phase heating wire outlet (option)

Notes on customization
Standard supply (if not specified): PTC heat conductor with one-sided wire outlet without terminals. Many mechanical and electrical modifications are feasible to suit applications; tooling costs may apply.

Technical specifications

• Brand: KLC Corporation
• Model family: LCH series (LCH-A ~ LCH-M)
• Power: 6 W ~ 2000 W (depending on model)
• Surface temperature: up to ~240 °C (type dependent)
• Voltage: AC/DC 12 V ~ 520/600 V (type dependent); custom options possible
• Exterior material (finned): Aluminum AL6061 / AL6063
• Standard lead wire: 22 AWG, 210 mm
• Key options: multi-stage heating, fan-assisted versions, multiple wire outlets, connectors, fixture plates, three-phase outlets
