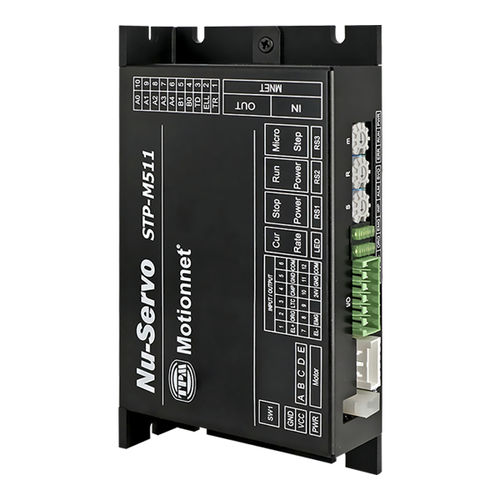

1-axis motion controller STP-M511

stepperEthernetRS-485

STP-M511 Features ● 5-phase Motionnet® micro-step drive ● Lowest vibration and noise ● High positional accuracy ● Adjustable running current and stop current ● Selectable micro step ● Max. 20Mbps transfer rate ● Easy installation with RJ45 phone jack and LED diagnostic ● Dimension : L-79 x W-140 x H-30mm Motionnet® Communication controller Motionnet® slave motion controller ASIC Serial interface RS-485 with transformer isolation Cable type CAT5 UTP / STP Ethernet cable Surge protection 10KV Transmission speed 2.5Mbps, 5Mbps, 10Mbps and 20Mbps Multi Axes Drive Max. 32 sets / ring I/O input signal PEL, MEL, ORG, LTC and EMG I/O output signal CMP Position control Incremental mode / Absolute mode Data range : 28 bits Homing mode ORG, Z-phase, Limit Totally 13 types Software Motion library (DLL) for Win XP / 7 / 10 Drive Input voltage 24 or 48V DC Drive model 5-phase Driving current 0.5~1.5A Max / Phase Driving current setting RUN : 0~F by rotary switch STOP : 0~F by rotary switch Micro-step 1, 2, 5, 10, 25, 50, 125, 250, 3, 4, 6, 12,18, 24, 36, 72 by rotary switch LED display EL+, EL-, ORG, EMG, INP, ALM, SVON, PWR, RUN, ERR, Current Rate Current consumption 3.1W typical (130mA / 24V) no load Ambient temperature In use : 0~50 °C In Storage : -20~70 °C Humidity In use : 35~85% (Non-condensing) In Storage : 10~90% (Non-condensing) Vib. reset 0.5G
