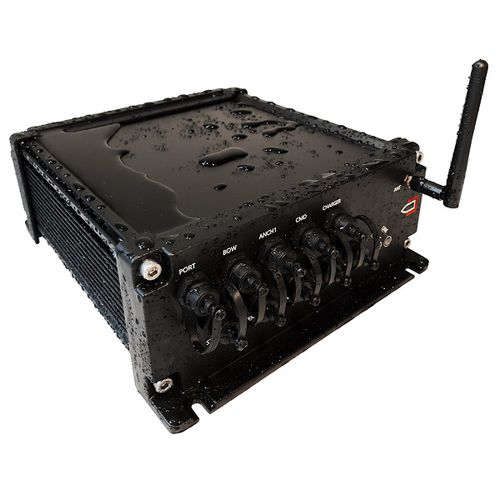

Robust enclosure AW serieswall-mountwith flangemodular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, with flange
- Configuration
- modular
- Material
- extruded aluminum
- Application
- industrial, outdoor, network, for controllers, for power supplies, for measuring devices, terminal, for cameras
- Protection level
- waterproof, robust, IP68, EMI-shielded
- Other characteristics
- heat sink
- Width
Max.: 206.3 mm
(8.1 in)Min.: 54.6 mm
(2.1 in)- Height
Max.: 92 mm
(3.6 in)Min.: 38.6 mm
(1.5 in)- Depth
Max.: 310 mm
(12.2 in)Min.: 65 mm
(2.56 in)
Description
IP68 and heat dissipation enclosure. Designed with flanged end panels.
PCB or chassis is mounted by sliding it horizontally into an inner-grooved body frame.
Designed for a tough environment where waterproof and heat countermeasures are required.
Suitable for outdoor use such as LED power supplies and junction boxes.
Specifications
See TAKACHI website for accessories and optional parts.
PCB or chassis is mounted by sliding it horizontally into an inner-grooved body frame.
Designed for a tough environment where waterproof and heat countermeasures are required.
Suitable for outdoor use such as LED power supplies and junction boxes.
Specifications
- Material : Diecast aluminium ADC12
- Protection class : IP68 (withstands immersion in water up to 1m for 24 hours)
- Operating temperature : -40°C ~ +105°C
- EMC shielded models available.
- 34 sizes available.
- Available in 4 color combinations.
See TAKACHI website for accessories and optional parts.
