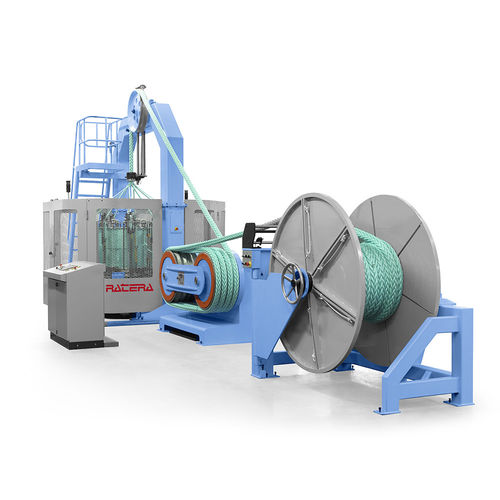

Rope braiding machine 12/680

for braided wirefor cablesvertical

• Number of carriers: 12 • Gauge: 680 mm. • Bobbin dimensions: Ø365×730 mm. • Bobbin capacity: 74319cm³. • Motor power: 7,5 Kw • Horngear speed: 33 • Carriers number of turn per minute: 11 rpm • Maximum rope: Ø85 mm. Gauge 680 machines are 2 models available. On one hand, the 8 carrier machine with its patented BackTwist system focused on the production of top-quality square rope. On the other hand, Ratera offers the 12 carrier machine for ropes up to ø 85mm, for example, enabling the production of a 70mm diameter rope with a length of 220 meters without splices. Ratera suministra distintos accesorios útiles y necesarios para la correcta obtención del producto final deseado y adaptarse a las necesidades de cada fabrica. Por ejemplo: • Back Twist System (patented), which allows for better precision in maintaining the twist of each rope during the braiding operation. • Compact pulling systems with porch, equipped with a Ø700mm wheel to produce a maximum of Ø70mm or autonomous pulling systems mounted on the ground with Ø800 wheels for making braids up to Ø85mm. • Metallic ladder for handling the pulling system. • Different types of anti-tangling switches at the braiding point with the option of a motorized zipper for adjustment. • Different guides and stoppind devices for the core. • Integral safety protections for personnel. • Ratera offers a wide range of take ups for folding the braiding thread, either in Ratera metal bobbins or in synchronized bobbin collectors. • Ratera offers the possibility of adapting to customer bobbins.
