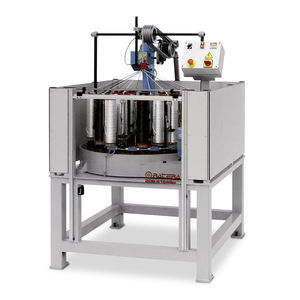

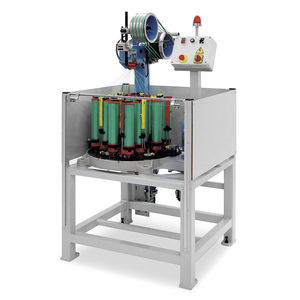

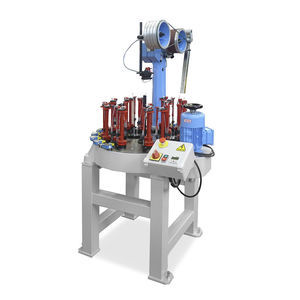

Solid rope braiding machine 12/115verticalround braidstainless steel
Add to favorites
Compare this product
Characteristics
- Function
- for solid rope
- Options
- vertical
- Braid type
- round braid
- Material
- stainless steel
- Number of carriers
12 unit
- Gauge
115 mm
(5 in)
Description
Double braiding machine with 12 carriers and 115-millimeter gauge specialized in braided cables and wires.
• Bobbin dimensions: Ø60×200 mm. Ø78×280 mm.
• Bobbin capacity: 549,49cm³. / 1.211,27cm³.
• Motor power: 0,37 Kw / 0.5 cv
• Horngear speed: 295/226 r.p.m.
• Carrier number of turns per minute: 37/28
• Maximum recommended diameter: 5-7,5 mm.
