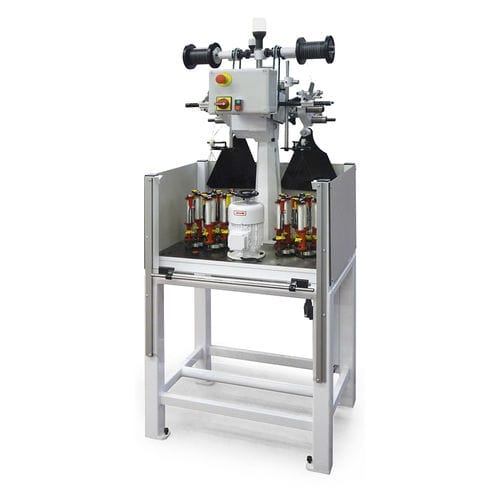

Vertical braiding machine 8/80

for medical application

Double braiding machine with 8 carriers and 80-millimeter gauge with one motor specialized in suture and medical braids. • Number of carriers: 8 • Gauge: 80 mm. • Bobbin dimensions: Ø39×110 mm. • Bobbin capacity: 96,85cm³. • Motor power: 0,5 CV • Horngear speed: 250 • Carrier number of turns per minute: 125 Gaugue 80, due to its design and construction, is the most precise small-sized braiding machine in the market. It is particularly suitable for creating small braids. Notably, it has been designed for braiding fine and delicate fibers, resulting in high-quality finished products. Accessories: • Different types of take off at the braiding point. • Different lengths and shapes of needles for obtaining perfect edges of flat ribbons. • Single or tension-controlled stopping devices for core control. • For elastic braids, a tension regulation device called “Ratex,” which, through an optimal combination of gears, achieves the desired rubber tension. • Take up systems. For example, a flat product braiding machine for flat products, a wheel braiding machine for the manufacture of fiberglass sleeves or stainless steel for surgical threads. Carriers for fine and delicate braided threads Gauge 80 carriers are robust for durability and precision and have been designed for the production of fine fabrics with very low denier. There are 3 sizes of bobbins: • Ø 39×110 mm. with a capacity of 97 cm³ (ideal for sutures) • Ø 42×110 mm. with a capacity of 125 cm³ • Ø 42×153 mm. with a capacity of 173 cm³”
