Cube ice maker CUBE250

Product overview

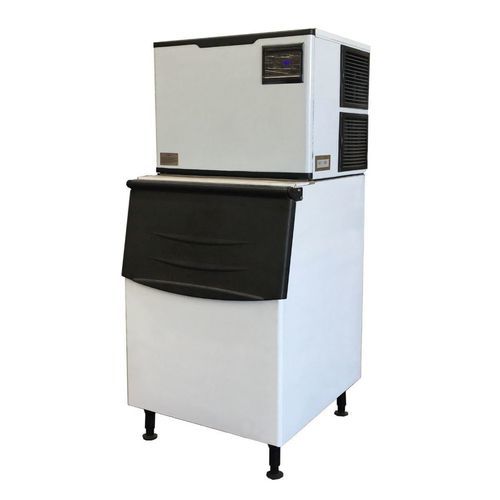

The Tamutom CUBE250 is a commercial cube ice machine designed to produce up to 250 kg of clear 22 mm cube ice per day. It is intended for cafes, restaurants, bars, hotels and other foodservice or commercial applications. Tamutom Ice Machines are manufactured under the brand name ROSEN.

Technical information
Total ice making capacity: 250 kg/day
Ice making capacity (per hour): 10.4 kg
Cube size: 22 mm × 22 mm × 22 mm
Ice temperature: -2 °C
Refrigerant: R404A (Freon)
Cooling mode: Air-cooled condenser
Power consumption: 1300 W
Power supply: 220 V / 50 Hz / 1PH
Ice storage bin capacity: 125 kg
Machine dimensions (L × W × H): 760 mm × 618 mm × 568 mm
Ice bin dimensions (L × W × H): 760 mm × 830 mm × 1150 mm

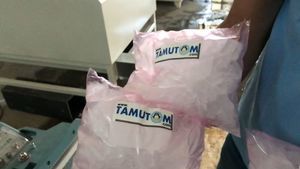

Other equipment: Ice delivery system (silo) and packing machine available

Getting the most out of your ice machine

• Allow a minimum of 15 cm clearance on both sides of the air-cooled machine for adequate air circulation.
• Reserve space at the back for electrical and water connections.
• Use potable inlet water of good quality to obtain clear cubes and reduce scale formation.
• Cooler inlet water improves production efficiency.
• Avoid installing the machine near heat sources to prevent reduced capacity.

Key features and commercial benefits

• Compact, contemporary design suitable for commercial environments.
• Low energy consumption relative to production capacity.
• Electronic controls for reliable operation and straightforward servicing.
• Suitable for high-demand operations: hotels, restaurants, bars, cafes, convenience stores, bakeries, healthcare and industrial food processes.
• Compatible insulated ice storage bin and door available as options.

Technical specifications

• Total ice making capacity: 250 kg/day
• Ice making capacity (per hour): 10.4 kg
• Cube size: 22 mm × 22 mm × 22 mm
• Ice temperature: -2 °C
• Refrigerant: R404A
• Cooling mode: Air-cooled condenser
• Power consumption: 1300 W
• Power supply: 220 V / 50 Hz / 1PH
• Ice storage bin capacity: 125 kg
• Machine dimensions (L × W × H): 760 mm × 618 mm × 568 mm
• Ice bin dimensions (L × W × H): 760 mm × 830 mm × 1150 mm
• Optional equipment: Ice delivery system (silo) and packing machine
