Cube ice maker CUBE500

Product overview

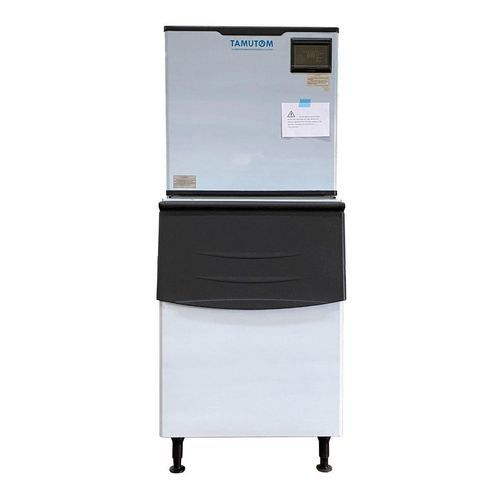

The Tamutom CUBE500 is a high-capacity cube ice machine producing up to 500 kg/day of clear, uniform 28×28×22 mm cubes. It is designed for commercial uses such as catering, hospitality, retail ice production and medical cold-chain support, where consistent daily output and reliable operation are required.

Cube ice machine technical data
Total ice making capacity: 500 kg/day
Ice making capacity (per hour): 20.8 kg
Cube size: 28 mm × 28 mm × 22 mm
Ice temperature: -2 °C
Refrigerant: R404A (Freon)
Cooling mode: Air-cooled condenser
Power consumption: 2600 W
Power supply: 220 V / 50 Hz / 1 phase
Ice storage bin capacity: 125 kg
Machine dimensions (L×W×H): 760 × 618 × 743 mm
Ice bin dimensions (L×W×H): 760 × 830 × 1150 mm
Other equipment: Ice delivery system (silo) and packing machine available as options

Getting the most from your ice machine

• Allow a minimum of 15 cm clearance at both sides for air-cooled models to ensure free air circulation.
• Reserve space at the rear for electrical and water connections and service access.
• Use potable water of good quality at the inlet to produce clear ice and reduce scale buildup.
• Lower inlet water temperature improves ice production efficiency.
• Avoid installing the machine near heat sources to maintain rated production capacity.

Key features and commercial benefits

• Contemporary, compact design suitable for commercial environments
• Optimised energy consumption for continuous operation
• Electronic controls for straightforward operation and maintenance
• Engineered for high-volume daily ice requirements
• Compatible insulated ice storage bin and door available

Applications

• Ice business: suitable for daily ice production and retail/wholesale ice sales
• Hospitality & entertainment: hotels, restaurants, bars, cafes and clubs
• Medical: storage and transport support for medicines and temperature‑sensitive products
• Food production: bakeries and food processing where chilled ingredients are required

Specifications / Caractéristiques techniques

• Production: 500 kg/day (20.8 kg/hour)
• Cube dimensions: 28 × 28 × 22 mm
• Ice temperature: -2 °C
• Refrigerant: R404A
• Cooling: Air-cooled condenser
• Power consumption: 2600 W
• Power supply: 220 V / 50 Hz / Single phase
• Ice storage capacity: 125 kg
• Machine dimensions (L×W×H): 760 × 618 × 743 mm
• Ice bin dimensions (L×W×H): 760 × 830 × 1150 mm
• Optional equipment: Ice delivery system (silo) and packing machine
