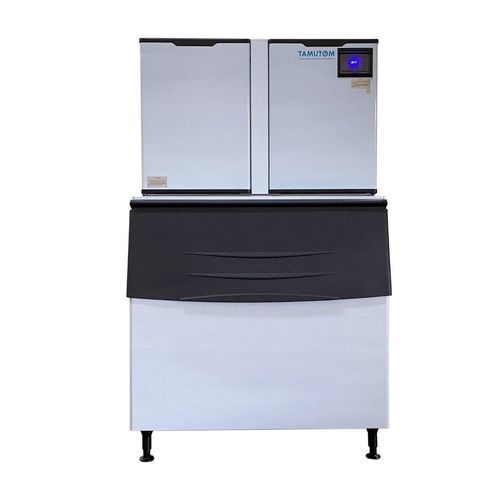

Cube ice maker CUBE900

Product overview
The Tamutom CUBE900 is a cube ice machine engineered for high-volume ice production. It delivers up to 900 kg per day of clear 28×28×22 mm cubes and is suitable for hotels, restaurants, bars, cafes, clubs, convenience stores, healthcare facilities and industrial ice suppliers.

Technical information (summary)
Total ice making capacity: 900 kg/day
Ice making capacity (per hour): 37.5 kg
Size per cube: 28 mm × 28 mm × 22 mm
Ice temperature: -2 °C
Refrigerant: R404A (Freon)
Cooling mode: Air-cooled condenser
Power consumption: 3800 W
Power supply: 380 V / 50 Hz / 3 PH
Ice storage bin capacity: 315 kg
Machine dimensions (L × W × H): 1227 mm × 648 mm × 803 mm
Ice bin dimensions (L × W × H): 1227 mm × 973 mm × 1255 mm
Other equipment: Ice delivery system (silo) and packing machine

Key features and commercial benefits

• Designed for continuous high-volume production
• Energy-efficient operation for reduced running costs
• Electronic controls for reliable operation and straightforward maintenance
• Compatible with insulated storage bin and access door options
• Simple integration with ice delivery and packing systems

Installation and operational recommendations

• Maintain at least 15 cm clearance on both sides for air circulation for air-cooled units
• Reserve adequate rear space for electrical and water connections
• Use potable inlet water of good quality to ensure clear cubes and reduce scaling
• Cooler inlet water improves production efficiency
• Avoid installation near heat sources to prevent capacity loss

Brand note
Tamutom Ice Machines are produced under the brand name ROSEN. The Cube Ice Machines range includes capacities of 250 kg, 500 kg and 900 kg per day.

Technical specifications

• Total ice making capacity: 900 kg/day
• Ice making capacity (per hour): 37.5 kg
• Cube size: 28 mm × 28 mm × 22 mm
• Ice temperature: -2 °C
• Refrigerant: R404A (Freon)
• Cooling mode: Air-cooled condenser
• Power consumption: 3800 W
• Power supply: 380 V / 50 Hz / 3 PH
• Ice storage bin capacity: 315 kg
• Machine dimensions (L × W × H): 1227 mm × 648 mm × 803 mm
• Ice bin dimensions (L × W × H): 1227 mm × 973 mm × 1255 mm
• Other equipment: Ice delivery system (silo) and packing machine
