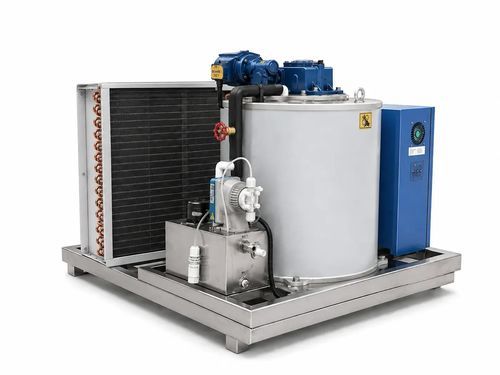

Flakes ice machine FIM500

Product Overview
The Tamutom FIM500 is a compact professional flake ice machine that produces up to 500 kg of fresh-water flake ice in 24 hours (≈20.83 kg/h). It generates thin flakes (~1.8–2 mm) at approximately -5°C for uniform cooling and attractive product presentation, suitable for seafood, retail and small food-processing operations.

Flake Ice Machine Technical Data

• Total ice production capacity: 500 kg/day
• Water type: Fresh (tap) water
• Hourly production: ≈20.83 kg/h
• Ice thickness: ~1.8–2 mm
• Ice temperature: approx. -5°C
• Refrigerant: Freon R404A
• Power source: 380–415 V, 3 Phase, 50–60 Hz
• Power consumption: 2.94 kW/h
• Compressor capacity: 3 HP
• Condenser: Air condenser, 7550 m³/h
• Unit weight: 250 kg
• Unit dimensions (WxDxH): 120 cm × 120 cm × 100 cm

Key Features and Commercial Benefits

• On-site continuous production up to 500 kg/day reduces reliance on external ice suppliers
• Compact footprint designed for environments with limited space
• Produces fresh water flake ice with high contact surface for efficient cooling
• Thin flakes (~1.8–2 mm) at ≈-5°C ideal for wrapping and displaying fish and seafood
• Well suited for small to medium businesses moving from purchased ice to in-house production

Suitable For

• Fish markets and retail counters
• Small fishing operations
• Seafood restaurants
• Restaurants and professional kitchens
• Butcher shops and meat counters
• Supermarkets, markets and delicatessens
• Small food processing plants
• Fruit and vegetable vendors
• Hotels and accommodation facilities
• Small cold-chain operations

Technical specifications

• Model: FIM500
• Production capacity: 500 kg/day (≈20.83 kg/h)
• Water type: Fresh (tap) water
• Ice thickness: ~1.8–2 mm
• Ice temperature: approx. -5°C
• Refrigerant: Freon R404A
• Power source: 380–415 V, 3 Phase, 50–60 Hz
• Power consumption: 2.94 kW/h
• Compressor capacity: 3 HP
• Condenser: Air condenser, 7550 m³/h
• Unit weight: 250 kg
• Unit dimensions (WxDxH): 120 cm × 120 cm × 100 cm
