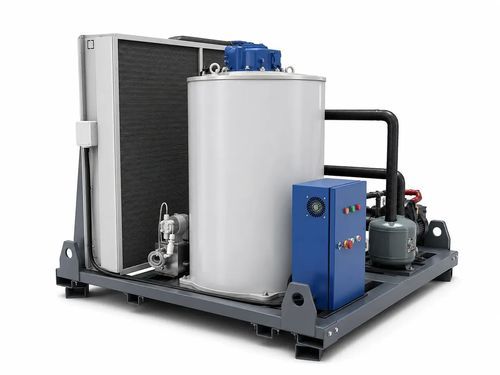

Flakes ice machine FIM1T

for food applications

Product Overview
1 ton/day (1000 kg/day) flake ice machine Tamutom FIM1T for fresh water and sea water operation. Designed for fish processing, seafood handling, food industry and cold chain logistics. Produces thin, hygienic flake ice for display counters, product preservation and transport with efficient energy use.

Flake Ice Machine Technical Data (Fresh Water)
Total Ice Production Capacity: 1000 kg/day
Water Type: Fresh (tap) water
Ice Production Capacity (Hourly): 41.67 kg/hour
Ice Thickness: ~1.8–2 mm
Power Source: 380-415 V, 3 Phase, 50-60 Hz
Ice Temperature: -5°C
Refrigerant: Freon R404A
Unit Weight: 300 kg
Unit Dimensions: 120 cm x 130 cm x 100 cm
Power Consumption: 4.84 kW/hour
Compressor Capacity: 5 HP
Condenser and Capacity: Air condenser / 14,500 m³/h

Key Features and Commercial Benefits
Serves as an intermediate capacity solution between small commercial ice makers and large industrial plants, delivering up to 1000 kg per 24 hours (approx. 41.67 kg/hour) in fresh or sea water operation. Enables on-site flake ice production to reduce reliance on external suppliers and operational costs. Produces thin, dry flakes (~1.8–2 mm at -5°C) that conform to temperature-sensitive products without damage, supporting freshness preservation and attractive presentation.

Use Cases / Suitable For

• Fish markets and retail points
• Fishing operations and boats
• Seafood processing facilities
• Supermarket fresh produce counters
• Meat and poultry plants
• Restaurants and catering companies
• Fruit and vegetable logistics hubs
• Cold chain operations

Why Tamutom FIM1T?
Continuous 1000 kg/day output (approx. 41.67 kg/hour). Produces optimal flake ice at -5°C with 1.8–2 mm thickness. Flexible operation with options for fresh water and sea water. Manufacturer support, spare parts availability and technical service provided.

Specifications / Technical Data

• Total Ice Production Capacity: 1000 kg/day
• Hourly Production: 41.67 kg/hour
• Water Type: Fresh water (sea water option available)
• Ice Thickness: ~1.8–2 mm
• Ice Temperature: -5°C
• Power Source: 380-415 V, 3 Phase, 50-60 Hz
• Refrigerant: Freon R404A
• Unit Weight: 300 kg
• Unit Dimensions: 120 cm x 130 cm x 100 cm
• Power Consumption: 4.84 kW/hour
• Compressor Capacity: 5 HP
• Condenser: Air condenser, 14,500 m³/h
