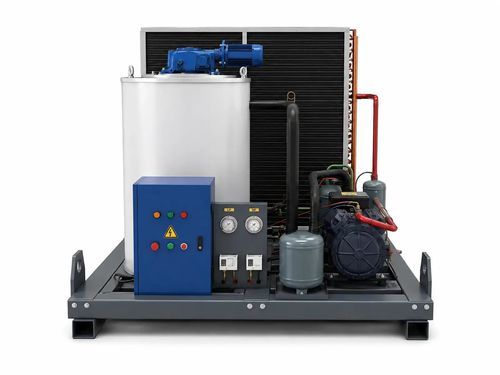

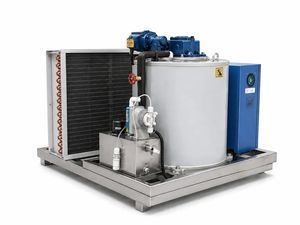

Flakes ice machine FIM3T

for food applications

Overview
The Tamutom FIM3T is a high-volume industrial flake ice machine engineered for professional food processing and cold chain operations. It produces up to 3 tons (3000 kg) of fresh water flake ice every 24 hours with an approximate output of 125 kg/hour. Flake ice is thin and irregular, enabling rapid and uniform cooling for seafood, fish, meat, poultry, fresh produce and other temperature-sensitive products.

Key benefits

• High continuous production capacity to protect product freshness and support large-scale processing.
• Enables on-site ice production to maintain control over water source and ice hygiene (HACCP compliant fresh water ice).
• Thin flake ice conforms to delicate products, increasing contact surface and delivering rapid uniform cooling.
• Designed for industrial working conditions with heavy-duty components for continuous operation.

Applications & target industries

• Fish processing & integrated plants
• Seafood processing facilities
• Commercial fishing enterprises
• Shrimp & shellfish processors
• Aquaculture & fish farming operations
• Meat & poultry processing plants
• Supermarket distribution centers
• Fruit & vegetable packing facilities
• Fresh food logistics & wholesale hubs
• Regional cold chain operations

Description and commercial notes
The FIM3T is developed for professional businesses that need fast, consistent and reliable cooling at larger scales. Producing approximately 125 kg/hour and around 1.8–2 mm thick flake ice at about -5°C, the machine supports continuous production, centralized distribution to multiple cooling points and integration into processing workflows. It features industrial refrigeration technology and a heavy-duty air-cooled condenser for robust daily performance.

Technical characteristics / specifications

• Total Ice Production Capacity: 3000 kg / day
• Water Type: Fresh (Tap) Water
• Ice Production Capacity (Hourly): 125 kg
• Ice Thickness: ~1.8 – 2 mm
• Power Source: 380-415 V, 3 Phase, 50-60Hz
• Ice Temperature: -5°C
• Refrigerant: Freon R404A
• Unit Weight: 800 kg
• Unit Dimensions: 160cm * 170cm * 100cm
• Power Consumption: 13.27 kW / hour
• Compressor Capacity: 15 HP
• Condenser and Capacity: Air Condenser / 22740 m³/h
