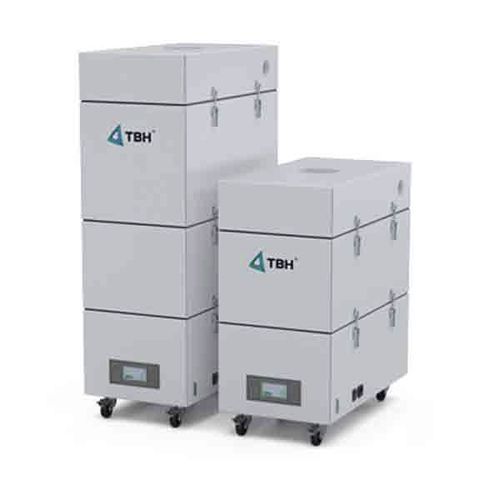

Dust extraction unit GL 265

laboratoryodor

Product overview
The GL 265 is a compact air extraction unit designed for noise-sensitive medical and laboratory environments. It supports modular filter configurations for particulate and odor removal and offers low acoustic emissions and reduced power consumption compared to equivalent extraction units.

Applications

• Medical practices and clinics
• Dental clinics
• Laboratories and research facilities

Technical data

• Air volume flow: max. 350 m³/h
• Effective air volume flow: 100 – 300 m³/h
• Max. static pressure: 6000 Pa
• Voltage: 100–240 V
• Frequency: 50/60 Hz
• Motor power: 0.6 kW
• Sound level: approx. 53 dB(A)
• Serial interface: 25-pin Sub-D

Product variants

• GL 265 — Pre-filter mat (F5), particle filter (H13), activated carbon
• GL 265 A — Pre-filter mat (F5), activated carbon
• GL 265 Z — Z-Linepanel Plus filter (F7), particle filter (H13)
• GL 265 ZA — Z-Linepanel Plus filter (F7), particle filter (H13), activated carbon

Filter configurations and ordering

• Replaceable filter modules to adapt filtration level to clinical requirements
• Available filtration stages: F5 pre-filter, F7 Z-Linepanel, H13 particle (HEPA) filter, activated carbon
