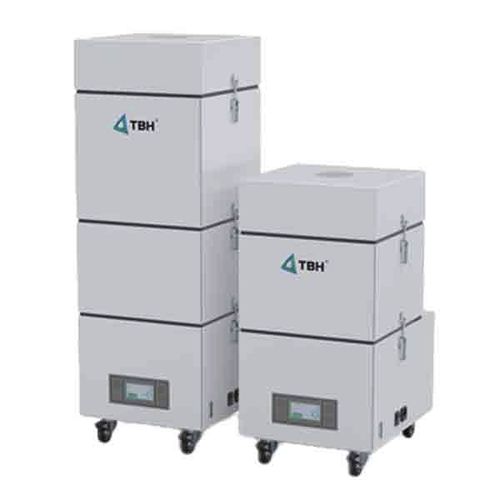

Laboratory extraction unit GL 230

Short description
The GL 230 is designed for noise-sensitive environments such as laboratories and medical examination rooms. It is an energy-efficient, low-noise filtered extraction system for local air extraction and filtration.

Product variants

• GL 230 — Filter configuration: Pre-filter mat (F5), particle filter (H13), activated carbon
• GL 230 A — Filter configuration: Pre-filter mat (F5), activated carbon
• GL 230 Z — Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13)
• GL 230 ZA — Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13), activated carbon

Technical data
Air volume flow: max. 350 m³/h
Effective air volume flow: 100 – 300 m³/h
Max. static pressure: 6000 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Motor power: 0.6 kW
Sound level: approx. 53 dB(A)
Serial interface: 25-pin Sub-D

Features / technical specifications

• Designed for noise-sensitive environments (laboratories, examination rooms)
• Energy-efficient operation
• Modular filter configurations (pre-filter F5, particle filters H13, Z-Linepanel Plus F7, activated carbon)
• Operating range: 100–300 m³/h (effective), max. 350 m³/h
• Max. static pressure 6000 Pa
• Universal power supply 100–240 V, 50/60 Hz
• 0.6 kW motor
• Approx. 53 dB(A) sound level
• Serial control interface (Sub-D 25-pin)
