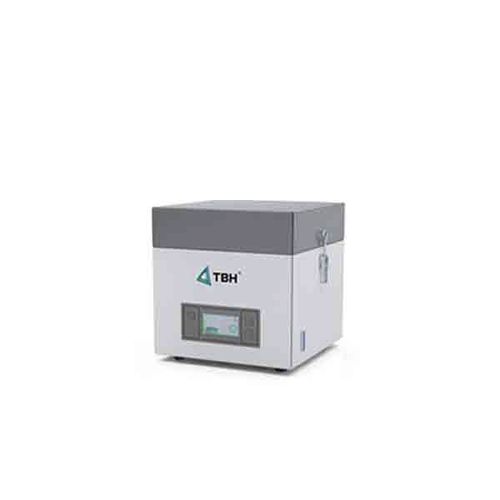

Benchtop fume extractor BF 5solderingwith HEPA filteractivated carbon filter
Add to favorites
Compare this product
Characteristics
- Mobility
- benchtop
- Applications
- soldering
- Filter type
- with HEPA filter, activated carbon filter
- Other characteristics
- compact
- Airflow
Max.: 100 m³/h
(3,531 ft³/h)Min.: 20 m³/h
(706 ft³/h)- Power
Max.: 0.04 kW
(0.05 hp)Min.: 0.04 kW
(0.05 hp)
Description
Description
Small, space-saving extraction unit designed for a single workstation. Suitable for soldering and gluing processes; captures fumes and particles at source to improve local air quality.
Product variants
Technical data
Air volume flow: max. 130 m³/h
Effective air volume flow: 20 – 100 m³/h
Max. static pressure: 1900 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Engine power: 0.04 kW
Type of drive: Brushless motor
Sound level: approx. 58 dB(A)
Characteristics / technical specifications
Small, space-saving extraction unit designed for a single workstation. Suitable for soldering and gluing processes; captures fumes and particles at source to improve local air quality.
Product variants
- BF 5 — Filter configuration: 2-stage filter (particle filter H13 + activated carbon filter)
- BF 5 A — Filter configuration: Activated carbon
Technical data
Air volume flow: max. 130 m³/h
Effective air volume flow: 20 – 100 m³/h
Max. static pressure: 1900 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Engine power: 0.04 kW
Type of drive: Brushless motor
Sound level: approx. 58 dB(A)
Characteristics / technical specifications
- Air volume flow — max. 130 m³/h
- Effective air volume flow — 20–100 m³/h
- Max. static pressure — 1900 Pa
- Voltage — 100–240 V
- Frequency — 50/60 Hz
- Engine power — 0.04 kW
- Type of drive — Brushless motor
- Sound level — approx. 58 dB(A)
- Suitable processes — soldering and gluing
- Designed for — single workstation, space-saving installation
