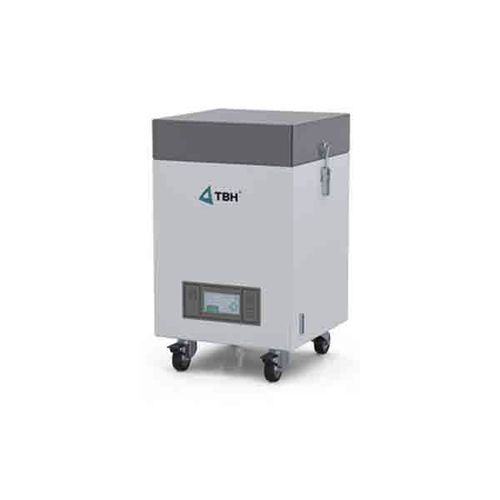

Mobile fume extractor BF 10

industrialactivated carbon filterwith HEPA filter

Overview
Entry-level mobile extraction and air filtration unit designed for occasional use at one to two workstations. Compact and mobile design with modular filter configuration available in Standard, A and ZA variants.

Product variants

• BF 10 — 2-stage filter configuration: H13 particle filter + activated carbon filter
• BF10 A — activated carbon filter
• BF10 ZA — Z-line filter (F7) + activated carbon

Technical data
Air volume flow: max. 250 m³/h
Effective air volume flow: 20 – 200 m³/h
Max. static pressure: 6000 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Motor power: 0.6 kW
Drive type: Brushless motor
Sound level: approx. 62 dB(A)

Features / specifications

• Suitable for 1–2 workstations, occasional use
• Modular filter options for application-specific filtration: H13 + activated carbon, activated carbon only (A), or Z-line F7 + activated carbon (ZA)
• Wide input voltage range for international deployment (100–240 V, 50/60 Hz)
• Brushless motor, 0.6 kW, for stable performance
• Adjustable effective airflow: 20–200 m³/h to match process needs
• Compact and mobile for easy positioning in production or maintenance areas
