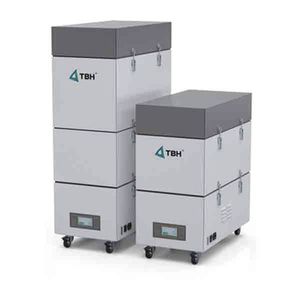

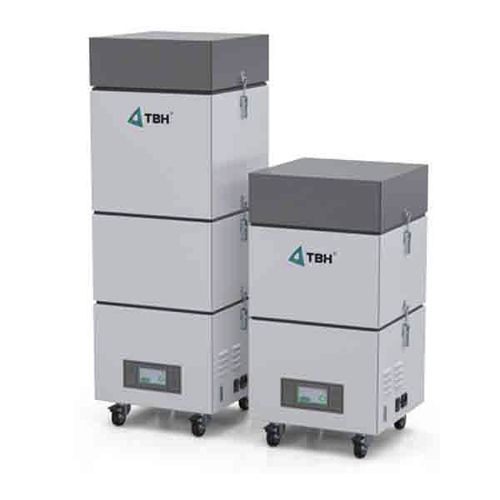

Vapor extraction unit BF series

dust

Description
The compact extraction system with a powerful brushless motor features control electronics with basic functions for autonomous operation and is modularly configurable.

Product variants

• BF 100R: Filter configuration: pre-filter mat (F5), particle filter (H13), activated carbon
• BF 200R: Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13), activated carbon

Technical data
Air volume flow: max. 280 m³/h
Effective air volume flow: 30 – 230 m³/h
Max. static pressure: 11000 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Engine power: 1.1 kW
Type of drive: Brushless motor
Sound level: approx. 59 dB(A)

Characteristics / technical specifications

• Compact extraction unit with brushless motor
• Control electronics with basic functions for autonomous operation
• Modular configuration suitable for different applications
• Max. air volume flow: 280 m³/h; effective: 30–230 m³/h
• Max. static pressure: 11,000 Pa
• Supply voltage: 100–240 V, 50/60 Hz
• Engine power: 1.1 kW
• Type of drive: Brushless motor
• Sound level: approx. 59 dB(A)
• Filter configurations per variant: BF 100R — pre-filter mat (F5), particle filter H13, activated carbon; BF 200R — Z-Linepanel Plus (F7), particle filter H13, activated carbon
