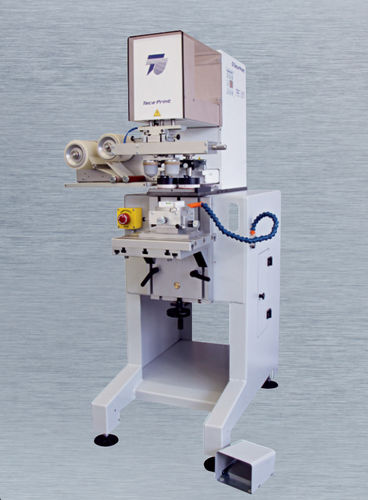

Pad printing machine with closed ink cup TPE 151

automaticmanualmonochrome

Due to the wide range of possible applicationsand the convincing price-preformance ratio theTPE 151 pad printing machine earns top marks.This user-friendly model has a compact andeasy to understand PLC control unit. The integrated quick-change system for inks andplates saves time and enables the application ofdiffering plate sizes.There are two possibilities to fasten the ink cup,either the practical ink cup holder with bayonetlock or optionally the electrical rotating cup cylinder. Specially as a manual work station the TPE 151proves to be a compact and practical allrounderand it is available with many extras e.g. the automatic pad cleaning device. INK CUP SIZES Ø in mm: 56 / 65 / 72/ 86 / 96 oval in mm: 140 x 070, 120 x 096 PLATE SIZES standard plate sizes in mm: 100 x 220 / 130 x 220 150 x 220 / 160 x 220 INK CUP FASTENING ink cup holder with bayonet lock, optional rotating cup cylinder with continuous rotation of the ink cup CONNECTION 230 V / 50 Hz compressed air 5 to 6 bar AIR CONSUMPTION 0,5 litre per cycle at 6 bar WEIGHT approx. 30 kg without base approx. 96 kg with MS 250 base DIMENSIONS w = 182 mm h = 500 mm d = 731 mm Dimensions are indicated without base
