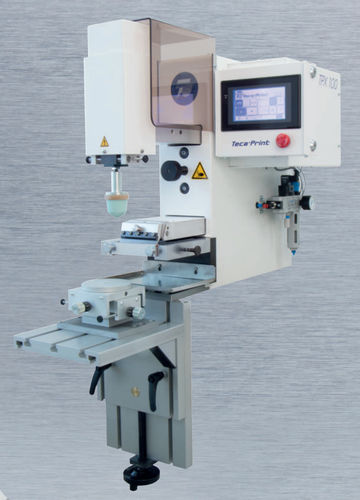

Pad printing machine with open ink cup TPX 100

automaticmonochrome2-color

The TPX 100 pad printing machine with anopen inking system onvinces as a small,compact machine with high-precision printingperformance and modern PLC control. The TPX 100 is therefore used wherever thebest performance is required for smaller printsizes. The electropneumatically driven machine, which is often used as a manual workstation, offers the highest printing and repeataccuracy. A colour touch screen enables aclear, user-friendly operation. For the TPX 100, a various range of peripheraldevices is available, e.g. the automatic thinnerinjection, a rotary or swing table, a pad slidingdevice, etc. Of course, the TPX 100 can becombined with different accessories such asmachine bases or coordinate tables. PLATE SIZES standard plate width in mm: 80 / 100 / 130 standard plate depth in mm: 80 / 100 REPEATABILITY < ± 0,02 mm CONNECTION 230 V / 50 Hz compressed air 5 - 6 bar AIR CONSUMPTION 0,5 liter per cycle at 6 bar VERTICAL PAD STROKE 100 mm special version 140 mm electronically - infinitely - adjustable PAD CLEARANCE 88 mm (plate depth 80 mm) WEIGHT approx. 30 kg without base DIMENSIONS w = 380 mm h = 560 mm d = 762 mm Dimensions are indicated without base.
