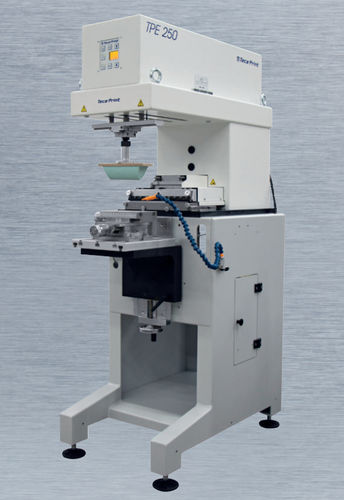

Pad printing machine with open ink cup TPE 250

automaticmonochrome2-color

The TPE 250 is a versatile open inkwell padprinting machine: The TPE 250 is still a very compact pad printing machine, but with a plate size of 250 x 100mm it already offers many application possibilities. Using either a pad shuttle or linear productshuttle it is possible to print from one to fourcolours. In addition to an easy-to-understand,compact PLC control system, the outstandingprice/performance ratio ensures a positive printing experience for many users. The TPE 250 is commonly used as a singleworkstation. Many accessories are available asa standard for comfortable working, such asthe automatic pad cleaning device or a machine base with coordinate table. STANDARD PLATE SIZE 250 x 100 mm REPEATABILITY < ± 0,02 mm CONNECTION 230 V / 50 Hz compressed air 5 to 6 bar AIR CONSUMPTION 0,9 litre per cycle at 6 bar WEIGHT approx. 82 kg without base approx. 148 kg with MS 250 base DIMENSIONS w = 350 mm h = 602 mm d = 830 mm Dimensions are indicated without base
