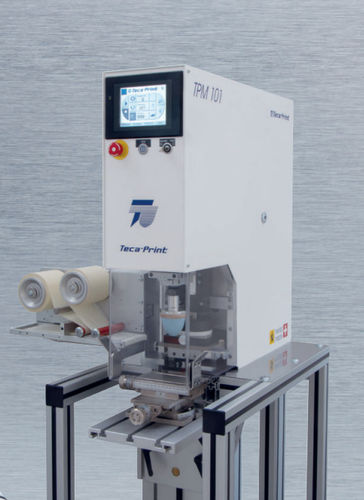

Monochrome pad printing machine TPM 101

for the printing industrywith touchscreencompact

Compact and user-friendly, the electromechanical state of the art TPM 101 Pad PrintingMachine is well-equipped to meet the requirements of today's market. The highest demands for cycle speed and printaccuracy are fulfilled: the single colour printingmachine is exceptionally well-suited for integration into automated systems with a print capacity of 1'500 to 4'000 prints per hour. With plate cooling and temperature compensation, new special technical functions areavailable as an option, which help to increase process stability and ensure a consistentlyhigh-precision print result.A coloured touch screen display with its clearand simplified user menu structure provides fora user friendly handling. INK CUP SIZES Ø 72 mm, Ø 96 mm, Ø 105* mm, Ø 115* mm *with overlapping cup PLATE SIZE standard plate sizes: 100 x 220 mm 120 x 220 mm CONNECTION 230 V / 50 Hz CONTROL UNIT modular PLC PLATE ADJUSTMENT ± 2 mm (x-axis) ± 2° (w-axis) WEIGHT approx. 72 kg without base approx. 138 kg with base MS 250 DIMENSIONS w = 210 mm h = 720 mm d = 730 mm Dimensions are indicated without base.
