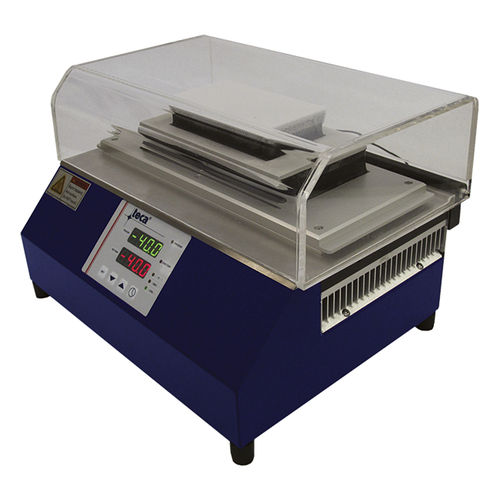

Thermoelectric cold plate AHP-1200 seriesaluminum
Add to favorites
Compare this product
Characteristics
- Options
- aluminum, thermoelectric
Description
• Precision machined anodized aluminum cold plate surface
• Stainless Steel threaded inserts
• Easy clean stainless steel apron
• Cools down to -50 °C
• Heats up to 150 °C
• 100-240 VAC universal input
• Low-profile design with ergonomic sloped front
• PWM controlled fan for quieter operation
• Weighs less than 30 lbs. (13.6 kg)
• Operating ambient range 0 °C to 50 °C
• Compact bench top unit, 11.2” X 15.1” footprint
• Hinged clear acrylic cover
• Virtually maintenance-free operation
• Painted Enameled stainless steel exterior housing
• Provides power and control to cascades
• Conforms to UL 61010-1 & 61010-2-010
• Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010
• FCC 47CFR PT 15: 2019; IEC 61326-1
