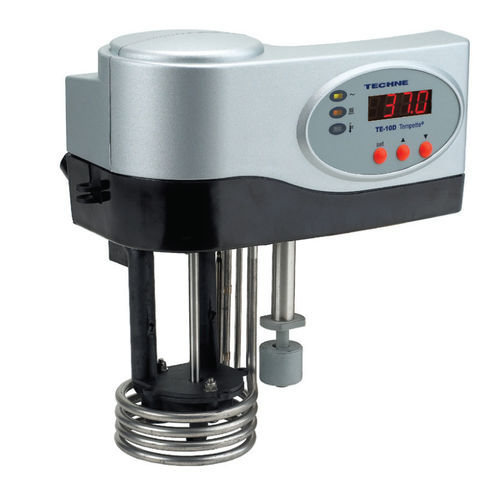

Calibration bath TE-10 series

Techne® invented the "Clip On" thermoregulator in 1948, and now offer four units. Thermoregulators are designed to be used with the Techne® unheated water baths or any other suitable laboratory vessels. They will heat, circulate and safely control the temperature of the liquid in the bath within precise limits. • Temperature range of -40°C* to 120°C • Excellent temperature stability: ±0.01°C at 40°C • 4 digit setting with a bright LED digital temperature display • Suitable for most routine laboratory applications • User adjustable over-temperature cut-out • Low liquid level cut-out as standard Specifications to DIN 12876 : TE-10D Temperature range* : -40°C to +120°C Temperature selec tion : Digital Temperature stability using water @ 40°C : ±0.01°C Method of control : PID Temperature sensor : PRT Adjustable over-temperature cut-out : Yes Low liquid level cut-out : Yes Pump capacity litresminute : 10 Pump capacity (mbar) : 145 Nominal heater power at 120V (W) : 1000 Nominal heater power at 240V (W) : 1000 Extension below base (mm) : 145 Dimensions L x W x H (mm) : 237 x 124 x 260 Shipping weight : 3.9kg
