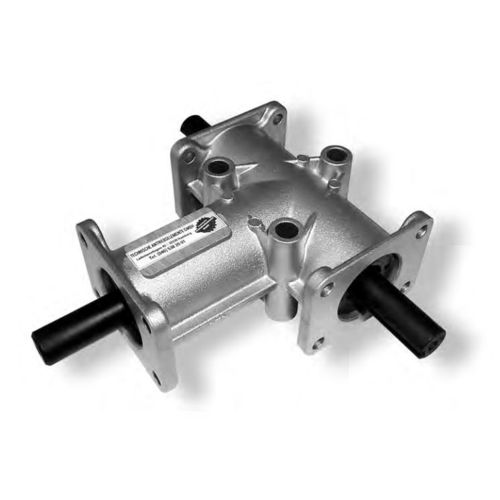

Bevel gear reducer R3 seriesright angle20 - 50 Nmprecision
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Shaft orientation
- right angle
- Torque
- 20 - 50 Nm
- Performance
- precision
- Applications
- for shaft
- Other characteristics
- universal
- Rotational speed
Max.: 1,400 rpm
(8,796.46 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
Max.: 27.2 kW
(36.98 hp)Min.: 0.37 kW
(0.5 hp)
Description
Bevel gear unit for universal and economical use. The housing, machined on all sides with many mounting holes and through holes, ensures trouble-free mounting in any position. Quiet operation is achieved even at high RPMs by special treatment of the bevel gears and special mounting
