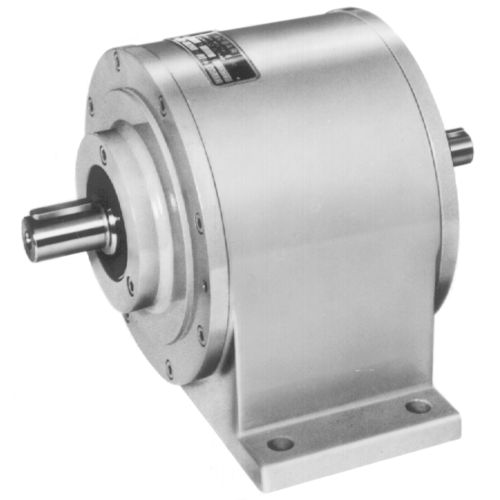

Cylindrical gear reducer ACBARcoaxial500 - 1000 Nmcompact
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Shaft orientation
- coaxial
- Torque
- 500 - 1000 Nm
- Configuration
- compact, modular
- Performance
- maintenance-free
- Applications
- for shaft
- Rotational speed
Max.: 6,000 rpm
(37,699.1118 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
These gearboxes are based on a modular system and feature a symmetrical, compact and coaxial design. Maximum reductions are possible with minimum space requirements. The gearboxes are permanently lubricated and are therefore absolutely maintenance-free. All gearbox parts rotate on rolling bearings.
The gearboxes have no oil fittings, are completely oil-tight on all sides and therefore can be mounted in any position. Available with various flanges, with mounting feet and with a hollow shaft.
