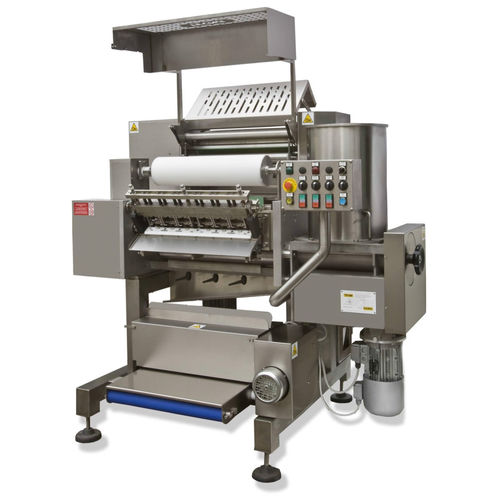

Ravioli forming machine RA 540 C

ravioli forming machine
ravioli forming machine
Add to favorites
Compare this product


raviolis, cappelletti

Min.: 175 kg/h (386 lb/h)

Max.: 650 kg/h (1,433 lb/h)


The RA 540 C-M is a machine for the production of filled pasta such as: single sheet ravioli, cappelletti and similar with meat and cheese filling. The technical solutions adopted have allowed to realize a reliable machine with reduced maintenance exigencies. It is suited to food industries, set in a continuous production line running during several shifts. Main technical features: - Basement and rollers in AISI 304 stainless steel. - Machine sidewalls in anodized aluminium. - One couple of laminating rollers of 145 mm. diameter with thickness adjustment and provided with independent motor. - Laminating rollers and die speed adjustment by electronic variator. - Adjustable pasta sheet feed system to minimize production wastes. - Integrated continuous filling feeder device with adjustable speed whilst the machine is running by electronic variator. Mounted on the left side of the machine with quick release for cleaning. - Clean design with kinematic controls separate from the working area. Reduced needs of lubrication. - Cam and gears casehardened and tempered. - Integrated scraps cutter device. - All food contact parts are made in stainless steel or a food grade material. - Device to adjust simultaneously all speeds. - Electric cabinet in stainless steel with command, control and safety devices. - Control push-button panel a side of the machine according to CE standards.


No catalogs are available for this product.
