Air hose P407/PU-LR (ETHER BASE)
pneumaticrubbersteel

Air hose - P407/PU-LR (ETHER BASE) - TECNICA - pneumatic / rubber / steel
Air hose - P407/PU-LR (ETHER BASE) - TECNICA - pneumatic / rubber / steel
Add to favorites
Compare this product

Characteristics

Use
for air, pneumatic
Material
rubber, steel, polyurethane
Applications
suction, for pneumatic conveying, food-grade, for the wood industry, for the paper industry, for the textile industry
Other characteristics
flexible, abrasion-resistant, anti-static, microbe-resistant, translucent, hydrolysis-resistant, ATEX, flame-retardant, electrically-conductive, spiral wire
Inner diameter

Max.: 500 mm
(19.685 in)

Min.: 40 mm
(1.575 in)

Pressure

Max.: 0.5 bar
(7.252 psi)

Min.: 0.01 bar
(0.145 psi)

Temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Delivered length

10 m, 15 m, 20 m
(32'09" , 49'02" , 65'07" )

Description

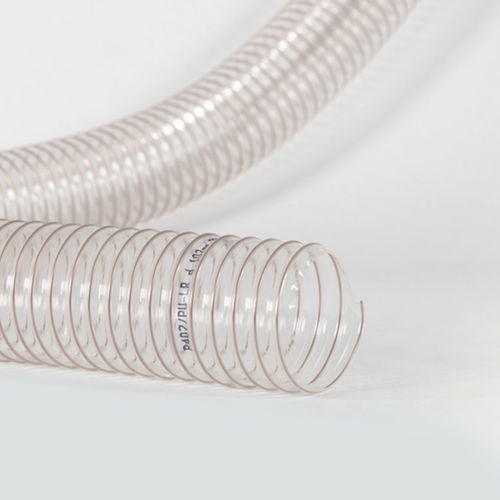

Flexible hose made of a polyurethane (PU-ether) sheet (th. 0,40mm) and embedded copper-plated steel wire helix with thick pitch. The main characteristic of this hose is its great resistance to abrasion and cutting (5-6 times greater than rubber and 7 times greater than PVC). Great flexibility and compressibility. SPECIFICATIONS COLOUR: Transparent AXIAL COMPRESSIBILITY: 5:1 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: MR WELL: MATERIALS APPLICATIONS Suction of chips, wood and other material, dust, pneumatic conveyance of textile fibres, paper, etc. MAINTENANCE Periodically check the state of wear of the hose and immediately replace it if damaged or broken. Pay maximum attention to the duct operating temperatures.
