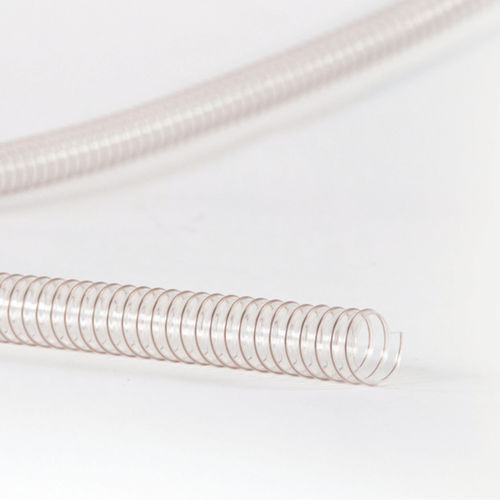

Pneumatic hose SM-PU (ESTER BASE)polyurethanepolyestersuction
Add to favorites
Compare this product
Characteristics
- Use
- pneumatic
- Material
- polyurethane, polyester
- Applications
- suction, for pneumatic conveying, for the wood industry, for the paper industry, for the textile industry
- Other characteristics
- flexible, standard, anti-static, translucent, flame-retardant, electrically-conductive, small bend radius, spiral wire
- Inner diameter
Max.: 50 mm
(1.969 in)Min.: 25 mm
(0.984 in)- Pressure
Max.: 2.5 bar
(36.259 psi)Min.: 0.5 bar
(7.252 psi)- Temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)- Delivered length
10 m, 15 m
(32'09" , 49'02" )
Description
The SM-PU hose (PU-ester) line was designed to respond to the need far small diameters.
The main characteristic of this product is the reduced elix pitch (10 mm).
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: MR
WELL: MATERIALS
APPLICATIONS
Suction of chips, wood and other material, dust, pneumatic conveyance of textile fibres, paper, etc.
MAINTENANCE
Periodically check the state of wear of the hose and immediately replace it if damaged or broken. Pay maximum attention to the duct operating temperatures.
