Iron-core linear motor TL 48synchronous400 Vlow-noise
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, iron-core
- Voltage
- 400 V
- Other characteristics
- low-noise, liquid-cooled, compact, small, maintenance-free, three-phase, direct-drive, modular, aluminum
- Speed
Max.: 1.7 m/s
(5.58 ft/s)Min.: 0 m/s
(0 ft/s)- Force
Max.: 3,600 N
Min.: 0 N
Description

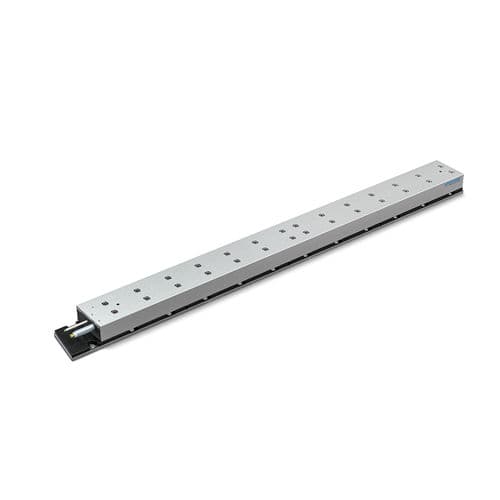

The TL48Q is a coil unit especially suited for applications with a high force demand and long strokes.
High force density
Low cogging
Low thermal resistance
Designed and constructed with an iron core, these linear motors offer extremely high continuous force for their size, starting at 60N for the small TM, all the way up to 3000N for the water cooled TBW powerhouse. Peak forces are even higher, reaching up to 6000N.
All this raw power comes in a surprisingly compact package. Its small footprint, modular design and high force density enable very fleible application designs. The ability to string multiple motors together, either in series or parallel, widens its range of applications even further.
Catalogs
TL48
2 Pages
Iron core linear motor brochure
24 Pages
