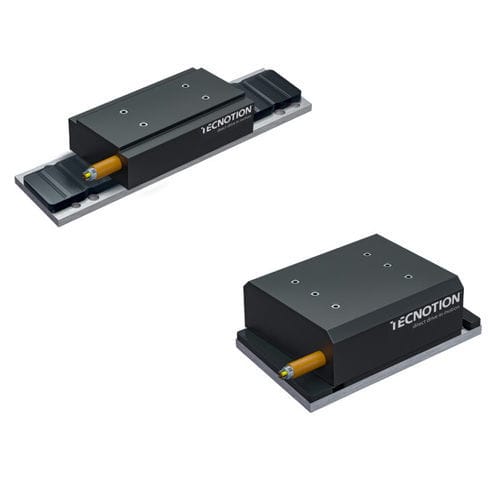

AC linear motor TD82 seriesthree-phasesynchronousiron-core
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase, AC
- Type
- synchronous, iron-core
- Voltage
- 380 V, 24 V, 48 V, 220 V, 320 V, 600V, 680V, 60 V, 0 - 60V, 560V, 380 V, 400 V, 28V, 565V, 200 V, 230-400 V, 500 V, 100 V, 72 V, 80 V
- Configuration
- direct-drive, small
- Protection level
- maintenance-free
- Performance
- high-speed, high-performance, high-precision
- Other characteristics
- compact, modular, high precision
- Speed
Max.: 6.4 m/s
(21 ft/s)Min.: 0 m/s
(0 ft/s)- Force
1,048 N, 1,078 N
- Power
Max.: 6,707 W
(9.12 hp)Min.: 0 W
(0 hp)- Stroke
Max.: 10,000 mm
(393.701 in)Min.: 0 mm
(0 in)
Description
TD36 - TD55 - TD82
TD36 series Unmatched small package
Force
Ultimate force: 89 – 177 N
Peak force: 75 – 149 N
Continuous force: 40 – 72 N
Coil Units: TD36-3, TD36-6
Magnet Plates: TD36-96, TD36-144, TD36-288
Build height 24,9 mm | Coil unit width 36 mm
TD55 series Unique low build height
Force
Ultimate force: 211 – 845 N
Peak force: 161 – 645 N
Continuous force: 106 – 426 N
Coil Units: TD55-3, TD55-6, TD55-9, TD55-12
Magnet Plates: TD55-96, TD55-384
Build height 32,1 mm | Coil unit width 55 mm
Force TD82 Maximum stroke, Maximum force density
Ultimate force: 453 – 1811 N
Peak force: 403 – 1611 N
Continuous force: 262 – 1048 N
Coil Units: TD82-3, TD82-6, TD82-9, TD82-12
Magnet Plates: TD82-192, TD82-288
Build height 41 mm | Coil unit width 82 mm
