AC linear motor TBW series

three-phaseiron-core0 - 60V

TBW series
Water cooled to reach even higher continuous forces
It features a fully integrated, highly efficient cooling system that enables the TBW to reach even higher continuous forces than the standard version and sustain extreme accelerations while maintaining its sub-micron position accuracy.

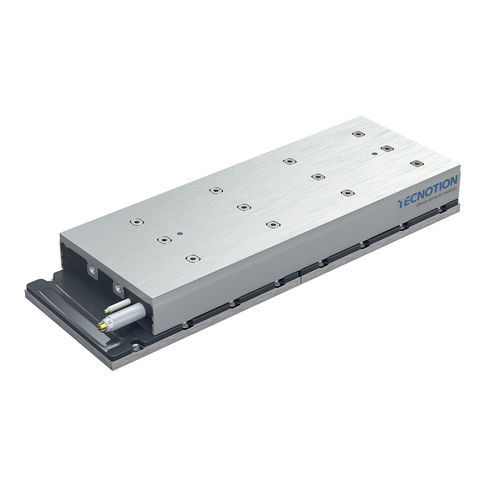

Iron core motor TBW series
The TBW iron core linear motor series is the water cooled variant of the TB series. It features a fully integrated, highly efficient cooling system that enables the TBW to reach even higher continuous forces than the standard version and sustain extreme accelerations while maintaining its sub-micron position accuracy.
Since heat is not dissipated into the machine´s construction, it is especially suited for applications where thermal management is an issue.

Force

• Ultimate force: 2700 – 6750 N
• Peak force: 2400 – 6000 N
• Continuous force watercooled: 1200 – 3000 N
• Continuous force aircooled: 1140 – 2850 N
• Coil Units: TBW18 – TBW30 – TBW45
• Magnet Plates: TB192 – TB288
• Coupling: supports coupling of iron core motors to increase available force
• Optional commutation: Digital Hall Module (4.5–28 Vdc) and Analog Hall Module (5 Vdc)
• Typical applications: semiconductor equipment, machine tooling, robotics, display and printing systems, vacuum and clean applications

Applications

• Semiconductors
• Display
• Science and aerospace
• Machine tooling
• Digital cutting
• Printing
• Robotics
• Life science
• Woodworking
• Stages and system solutions
• Vacuum applications
• and more

Optional modules

• Digital Hall Module: provides 3 digital outputs phase shifted 120° to determine electrical angle; requires 4.5 to 28 Vdc supply.
• Analog Hall Module: uses the magnet track as linear scale, easily mounted on iron core motors; requires standard 5 Vdc supply.
