AC linear motor TD55 seriesthree-phasesynchronousiron-core
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase, AC
- Type
- synchronous, iron-core
- Voltage
- 320 V, 400 V
- Configuration
- direct-drive, small
- Protection level
- maintenance-free
- Performance
- high-speed, high-performance, high-precision
- Other characteristics
- compact, modular, high precision
- Speed
Max.: 19.8 m/s
(64.96 ft/s)Min.: 0 m/s
(0 ft/s)- Force
Max.: 426 N
Min.: 0 N
- Power
Max.: 2,099 W
(2.85 hp)Min.: 0 W
(0 hp)- Stroke
Max.: 10,000 mm
(393.701 in)Min.: 0 mm
(0 in)
Description

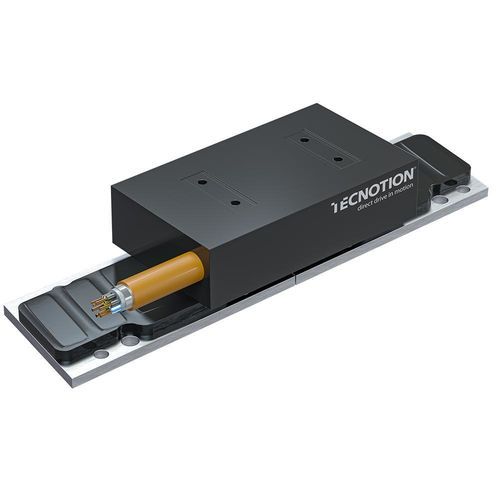

TD55 series
Unique low build height
The perfect addition to our motor portfolio, compact performance in a low-profile design
Iron core motor TD55 series
Built for tight spaces—without sacrificing performance. The TD55 series delivers serious continuous force in a surprisingly compact design. With its low build height, this motor is ideal for OEM applications where space is limited but reliability and output cannot be compromised.
Despite its slim dimensions, the TD55 features a lightweight coil unit, improving dynamic responsiveness. Thermal performance is carefully managed: a high-conductivity resin and an integrated Pt1000 sensor ensure stable temperature monitoring. The hybrid combi cable combines power and sensor wiring, offering improved flexibility and streamlined cable management.
Iron core motor TD55 series
Built for tight spaces—without sacrificing performance. The TD55 series delivers serious continuous force in a surprisingly compact design. With its low build height, this motor is ideal for OEM applications where space is limited but reliability and output cannot be compromised.
Despite its slim dimensions, the TD55 features a lightweight coil unit, improving dynamic responsiveness. Thermal performance is carefully managed: a high-conductivity resin and an integrated Pt1000 sensor ensure stable temperature monitoring. The hybrid combi cable combines power and sensor wiring, offering improved flexibility and streamlined cable management.
Build height 32,1 mm | Coil unit width 55 mm
Force
Applications
Unique low build height
The perfect addition to our motor portfolio, compact performance in a low-profile design
Iron core motor TD55 series
Built for tight spaces—without sacrificing performance. The TD55 series delivers serious continuous force in a surprisingly compact design. With its low build height, this motor is ideal for OEM applications where space is limited but reliability and output cannot be compromised.
Despite its slim dimensions, the TD55 features a lightweight coil unit, improving dynamic responsiveness. Thermal performance is carefully managed: a high-conductivity resin and an integrated Pt1000 sensor ensure stable temperature monitoring. The hybrid combi cable combines power and sensor wiring, offering improved flexibility and streamlined cable management.
Iron core motor TD55 series
Built for tight spaces—without sacrificing performance. The TD55 series delivers serious continuous force in a surprisingly compact design. With its low build height, this motor is ideal for OEM applications where space is limited but reliability and output cannot be compromised.
Despite its slim dimensions, the TD55 features a lightweight coil unit, improving dynamic responsiveness. Thermal performance is carefully managed: a high-conductivity resin and an integrated Pt1000 sensor ensure stable temperature monitoring. The hybrid combi cable combines power and sensor wiring, offering improved flexibility and streamlined cable management.
Build height 32,1 mm | Coil unit width 55 mm
Force
- Ultimate force: 211 – 845 N
- Peak force: 161 – 645 N
- Continuous force: 106 – 426 N
- Coil Units: TD55-3, TD55-6, TD55-9, TD55-12
- Magnet Plates: TD55-96, TD55-384
Applications
- Semiconductor equipment
- Display manufacturing
- Science and aerospace
- Machine tooling
- Digital cutting
- Printing
- Robotics
- Life sciences
- Woodworking
- Stage and system solutions
- Vacuum applications
- And more
