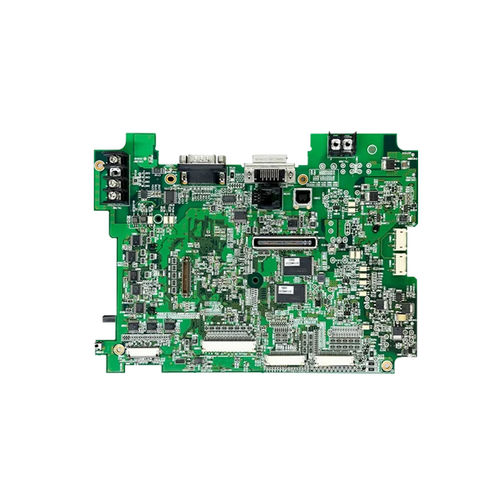

Signal measurement circuit board EMS103

customRoHS compliant4-layers

Key Features 1. High-Fidelity Signal Processing • 1GHz+ bandwidth for capturing even the most detailed waveforms • 12-bit ADC resolution with 5GS/s sampling rate for superior clarity • Ultra-low noise floor (<1mV RMS) ensures precise, repeatable measurements 2. Advanced Triggering System • Multi-level edge, pulse, and pattern triggering options • <100ps timing resolution for pinpoint accuracy • Automatic waveform capture and hold for fast diagnostics 3. Exceptional Measurement Accuracy • ±0.5% vertical measurement accuracy • <1% horizontal timing accuracy • 32-bit floating-point DSP for advanced data processing Technical Specifications: Input Impedance: 1MΩ±1% || 15pF Max Input Voltage: 400V (CAT II) Memory Depth: 256Mpts/channel (expandable) Interface: USB 3.0, Gigabit Ethernet, HDMI Applications: Electronics R&D laboratories Industrial equipment diagnostics Telecommunications testing Power electronics analysis Quality Assurance: MIL-STD-202G vibration tested 100% automated calibration verification RoHS/REACH compliant
