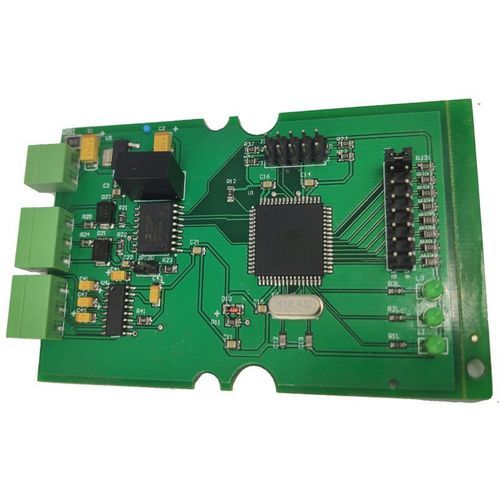

Lead-free printed circuit board

Through Hole PCB Assembly With an end-to-end through-hole PCB assembly service from prototype to production, Tecoo has always been committed to providing high-end technical solutions. Our full through-hole PCB assembly capabilities have always met international quality standards. Our through-hole PCB assembly services include manual and automated techniques, and have consistently provided our customers with through-hole PCB assembly at the highest quality level and in a cost-effective manner. Tecoo has a professional and experienced PCB assembly team that specializes in hand soldering components, as well as automatic insertion of axial and radial components and automatic dual wave soldering. Our through-hole PCB assembly testing and inspection capabilities: - In-Line Testing: Performed on high-volume production lines to check soldering and other components in detail every minute. - Automated Optical Inspection (AOI): Uses a camera to automatically scan the PCBA, collecting images and comparing tested solder joints with qualified parameters in the database. Checks for defects on the PCBA by image processing, and uses AOI as a tool to reduce defects by displaying or automatically marking them during the assembly process. Ensures no solder, component, or BGA defects. - Automatic X-ray Inspection (AXI): Detects short fills, shorts, fills, etc. Mechanical X-ray inspection helps reduce the number of defects and improve the quality of through-hole circuits. - Burn-in Tests: Performed on components to detect their failure or reliability in a real-world environment. - Assisted Visual Inspection: Experts perform detailed inspections of welding and component placement accuracy using advanced visual inspection equipment. Tecoo's Through Hole PCB Assembly Service Capabilities: - Components: Connectors and terminals, BGA, uBGA, QFN, and Leadless chips, Fine pitch to 8 Mils - Board Type: Copper Core PCB, Aluminum PCB, Rigid-Flex boards, Rigid FR-4 PCB, etc. - Board Shape: Slots and Cut outs, Rectangular, Complex and Irregular, Round - Component Package: Loose parts and bulk, Reels, Tube and tray, Cut tape - Assembly Process: Leaded process, Lead-Free (RoHS) - Board Dimensions: Largest size: 510mm x 480mm, Smallest size: 50mm x 50mm - Design File Format: Centroid (Pick-N-Place/XY file), BOM (Bill of Materials) (.xls, .csv, .xlsx), Gerber RS-274X - Fast Delivery - Quality Assurance - 24/7 Customer Service Technical Specifications / Features: - Manual and automated through-hole PCB assembly - Hand soldering, automatic insertion of axial and radial components, automatic dual wave soldering - In-line, AOI, AXI, burn-in, and visual inspection testing - Supports a wide range of board types and shapes - Handles various component packages and assembly processes - Board size range: 50mm x 50mm to 510mm x 480mm - Accepts multiple design file formats
