Pt100 temperature sensor PTFERTD
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100, RTD
- Temperature
Min.: 0 °C
(32 °F)Max.: 220 °C
(428 °F)
Description

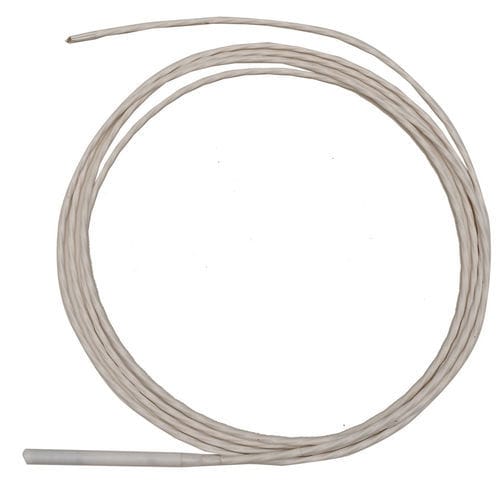

Pt100 sensor suitable to detect the temperature of the coils of MV-MV, MV-HV transformers.
PTFE 30 KV
RTD Pt100 Pt100 ohm at 0°C
Calibration: IEC 60751
Round Ø 10 x 120 mm
Cable CuAg 3 x 0,38 mm² insulated
Standard cable length: 2,5 mt (different lenghts on request)
Dielectric strength: 30 kVac – 60”
Max. operating temp.: 220°C
