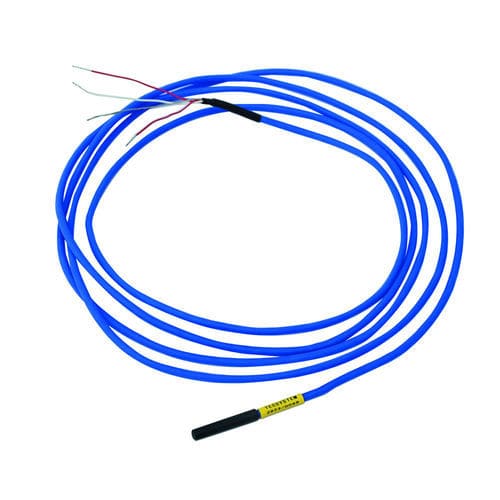

RTD temperature sensor PTSW

Pt100IP67flexible

Pt100 sensor suitable to detect the temperature of the coils of MV-LV transformers. Extension cable 3 wires with shield Standard cable length: 2,5 mt (different lenghts on request) Technical details Working temperature: from -40°C to +200°C Sensor Type: RTD Pt100 ohm at 0°C Coefficient Alfa=0,385 Ω /°C Calibration: IEC 60751 Accuracy: Class B Cable Flexible tinned copper wires 3 x 0,20 mm² Primary insulation: FEP Aluminium foil shield Secondary insulation: blue silicone rubber Colour: – 2 red conductors – 1 white conductor Tests Dielectric strength: 5 kVca per 60”
