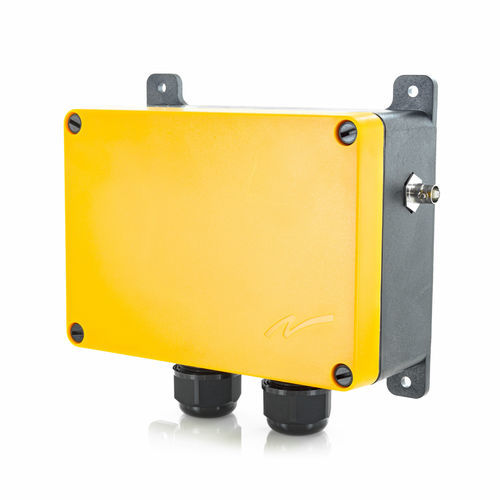

Wireless receiver TG-R4 series

radiofor construction sitefor radio remote control

Product Overview: The Tiger G2 receiver with 17 function relays is designed for safe wireless and radio remote control in industrial environments. It is suitable for a wide range of applications, including conveyor belts, cranes, hoists, winches, recovery and rescue vehicles, vacuum trucks, harvesting machines, transport trailers, tile plows, mining excavators, vessel dredges, silage covering, and rock crushers. Common Applications: - Conveyor belts - EOT cranes - Gantry cranes - Electrical hoists - Tower cranes - Winches - Recovery vehicles - Rescue vehicles - Vacuum trucks - Harvesting machines - Transport trailers - Tile plows - Mining excavators - Vessel dredges - Silage covering - Rock crushers Technical Specifications: - Article number: TG-R4-6 / 100-001-528-45, TG-R4-8 / 100-001-530-33 - Frequency: 433 MHz (69 channels), 915 MHz - Power supply: 12-24V AC/DC, 48V AC, 115V AC, 230V AC - Protection: IP66 - Certifications: CE, G Lloyd, FCC, IC - Weight: 950 gr - Dimensions: ~ 176 x 126 x 75 mm - Temperature: -20 to +55 °C - Code combination: 4,200,000,000 - Function relays: 17 - Bus system: None Key Features: - 17 function relays for versatile control - Multiple power supply options (AC/DC) - High protection class (IP66) - Wide operating temperature range - Certified for industrial use (CE, FCC, G Lloyd, IC) - Large code combination for security - Compact and robust design
