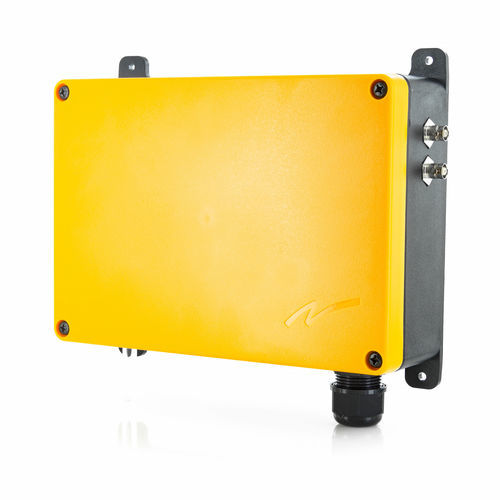

Wireless receiver TG-R9 seriesfor construction sitefor miningfor remote control
Add to favorites
Compare this product
Characteristics
- Type
- wireless
- Applications
- industrial, for construction site, for remote control, for radio remote control, for mining
- Other characteristics
- rugged, 16-channel, 69 channels, with relay output, 433 MHz, CE certified, G Lloyd certified, IP66
Description
Product Overview:
The Tiger G2 receiver with 12 function relays is designed for safe and reliable wireless remote control in industrial environments. It is suitable for a wide range of applications, including conveyor belts, cranes, hoists, winches, recovery and rescue vehicles, vacuum trucks, harvesting machines, transport trailers, tile plows, mining excavators, vessel dredges, rock crushers, and silage covering.
Common Applications:
- Conveyor belts
- EOT cranes
- Gantry cranes
- Electrical hoists
- Tower cranes
- Winches
- Recovery vehicles
- Rescue vehicles
- Vacuum trucks
- Harvesting machines
- Transport trailers
- Tile plows
- Mining excavators
- Vessel dredges
- Rock crushers
- Silage covering
Technical Specifications:
- Article number: TG-R9-1 / 100-001-531-46
- Frequency: 433 MHz (69 channels)
- Power supply: 230V AC & 12-24V DC & 48V AC & 115V AC & 24V AC
- Protection: IP66
- Certifications: CE, G Lloyd
- Weight: 1800 gr
- Dimensions: ~ 256 x 175 x 85 mm
- Temperature range: -20 to +55 °C
- Code combination: 4,200,000,000
- Function relays: 12
- Bus system: None
