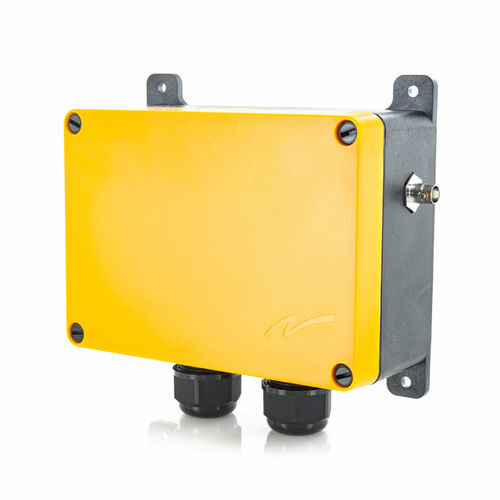

Wireless receiver TG-R4-2 seriesradiofor construction sitefor mining
Add to favorites
Compare this product
Characteristics
- Type
- radio, wireless
- Applications
- industrial, for construction site, for remote control, for mining
- Interface type
- CANopen
- Other characteristics
- compact, rugged, 69 channels, 433 MHz, 915 MHz, CE certified, FCC certified, IC certified, G Lloyd certified, IP66
Description
Product Overview:
The Tiger G2 receiver with 7 function relays and CANopen is designed for industrial wireless remote control applications. It is suitable for a wide range of machinery and vehicles, providing robust and reliable control in demanding environments.
Common Applications:
- Conveyor belts
- EOT cranes
- Gantry cranes
- Electrical hoists
- Tower cranes
- Winches
- Recovery vehicles
- Rescue vehicles
- Vacuum trucks
- Rock crushers
- Silage covering
- Vessel dredges
- Mining excavators
- Tile plows
- Transport trailers
- Harvesting machines
Technical Specifications:
- Article number: TG-R4-26 / 100-001-518-53, TG-R4-28 / 100-001-519-66
- Frequency: 433 MHz (69 channels), 915 MHz
- Power supply: 230V AC, 12-24V DC, 12V AC, 48V AC, 115V AC, 24V AC
- Protection: IP66
- Certifications: G Lloyd, CE, FCC, IC
- Weight: 800 g
- Dimensions: ~176 x 126 x 52 mm
- Temperature: -20 to +55 °C
- Code combination: 4,200,000,000
- Function relays: 7
- Bus system: CANopen
Key Features:
- 7 function relays
- CANopen bus system
- Multiple power supply options (AC/DC)
- High protection class (IP66)
- Wide operating temperature range
- Certified for industrial use (G Lloyd, CE, FCC, IC)
- Compact and lightweight design
