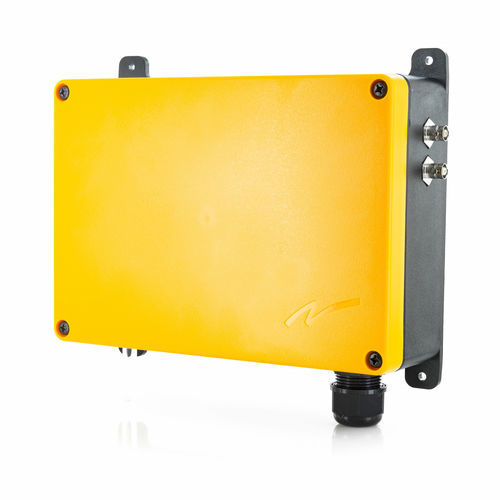

Wireless receiver TG-R9-6 / 100-001-535-98

radioharsh environmentfor remote control

Product Overview: The Tiger G2 receiver with 12 function relays is designed for industrial wireless remote control applications. It supports Modbus/TCP and Profibus bus systems, making it suitable for integration into a wide range of automation and control environments. Common Applications: - Conveyor belts - EOT cranes - Gantry cranes - Electrical hoists - Tower cranes - Winches - Recovery vehicles - Rescue vehicles - Vacuum trucks - Harvesting machines - Transport trailers - Tile plows - Mining excavators - Vessel dredges - Silage covering - Rock crushers Technical Specifications: - Article number: TG-R9-6 / 100-001-535-98 - Frequency: 433 MHz (69 channels) - Power supply: 230V AC, 12-24V DC, 48V AC, 115V AC, 24V AC - Protection: IP66 - Certifications: CE, G Lloyd - Weight: 1900 gr - Dimensions: ~ 256 x 175 x 85 mm - Temperature range: -20 to +55 °C - Code combination: 4,200,000,000 - Function relays: 12 - Bus system: Modbus/TCP, Profibus Key Features: - Robust industrial receiver for wireless remote control - 12 function relays for versatile control - Multiple power supply options for flexible installation - High ingress protection (IP66) for harsh environments - Certified for industrial use (CE, G Lloyd) - Wide temperature operating range - Supports both Modbus/TCP and Profibus for integration with modern automation systems
