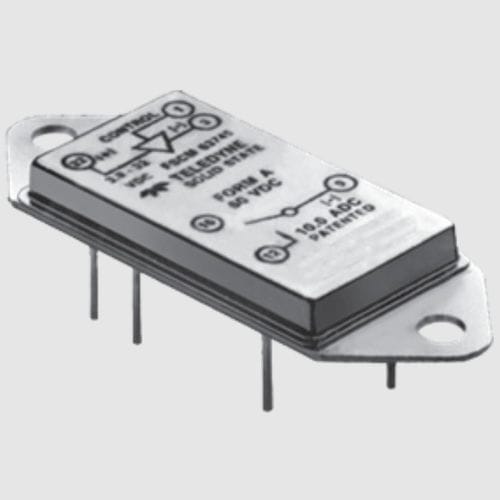

12VDC solid state relay LD24KK14 Vdc28 Vdc36VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 12VDC, 14 Vdc, 28 Vdc, 36VDC
- Features
- low-profile
- Function
- power
- Other characteristics
- DC output, with LED indicator, high-reliability, MOSFET, hermetic
- Switching current
5 A
- Output voltage
Max.: 270 V
Min.: 0 V
- Output current
5 A
Description
The Series LD24KK solid-state relays are screened utilizing MIL-PRF-28750 test methods and are packaged in low profile hermetically sealed cases. These relays are constructed with state-of-the-art solid state techniques and feature fully floating power FET output technology. This allows the load to be connected to either output terminal and provides a low ON resistance. The input and output are optically isolated to protect input logic circuits from output transients. A trip status indicator turns on when an overcurrent condition has occurred and the short-circuit protection has been activated. Designed for outputs up to 270Vdc but also used in many applications switching 36, 28, 14, and 12Vdc.
MSL 1
Available options include:
LD24KK 5A, 270Vdc Load; 4.2-16Vdc Control, Short Circuit Protection and Trip Status
Catalogs
No catalogs are available for this product.
See all of Teledyne Relays‘s catalogsOther Teledyne Relays products

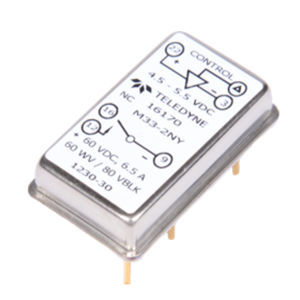

Military Solid State Relays
