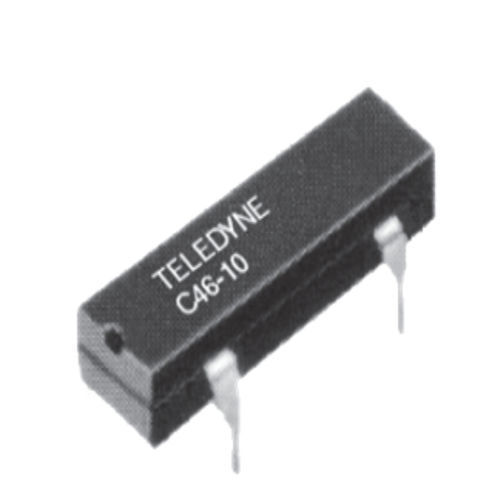

DC solid state relay C47miniaturepowerhigh-performance
Add to favorites
Compare this product
Characteristics
- Control voltage
- DC
- Features
- miniature
- Function
- power, high-performance
- Other characteristics
- DC output, MOSFET, miniature
- Output voltage
Max.: 360 V
Min.: 50 V
- Output current
Max.: 1.8 A
Min.: 0.4 A
Description
The Series C47F miniature solid-state relays utilize a photovoltaic generator driving high-performance power FET chips to provide low-output on resistance and high-output switching capability. The virtual elimination of offset voltage makes these relays ideal for low level switching applications as well. Bidirectional switching versions (Series C46F) are available.
MSL 6
Available options include:
C47F-10 1.75A, 50Vdc Load; 3.8-32Vdc Control
C47F-20 1A, 90Vdc Load; 3.8-32Vdc Control
C47F-30 0.6A, 180Vdc Load; 3.8-32Vdc Control
C47F-40 0.4A, 360Vdc Load; 3.8-32Vdc Control
