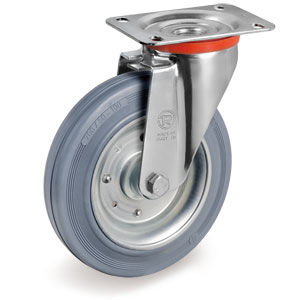

Swivel caster 23 series
base platenon-markingindustrial

Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 2
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 3
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 4
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 5
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 6
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 7
Swivel caster - 23 series - Tellure Rôta - base plate / non-marking / industrial - image - 8
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
swivel
Mount
base plate
Other characteristics
non-marking, industrial, for trolleys, handling, light-duty, rubber, pressed steel, metal, resin
Load capacity

Max.: 235 kg
(518 lb)

Min.: 66 kg
(146 lb)

Wheel diameter

Max.: 200 mm
(7.874 in)

Min.: 80 mm
(3.15 in)

Description

Suitable for trolleys with light-duty loads, also in the presence of obstacles and for indoor-outdoor use. The grey non-marking rubber tyre makes them suitable for use on fragile floors as well as in in domestic/institutional environments. Examples of recommended applications: luggage trolleys, tool trolleys, small mobile scaffoldings, waste bin containers. TECHNICAL FEATURES WHEEL TREAD: standard non-marking rubber tread; hardness 80 Shore A CENTRE: made of two riveted galvanized pressed steel discs. BRACKETS: NL, ENVIRONMENTS OF USE Suitable for industrial and institutional environments, also in presence of humidity and oils. Not suitable in presence of aggressive chemical agents. WEAK ACIDS - - WEAK BASES - STRONG ACIDS - - STRONG BASES - WATER - - HYDROCARBONS - ALCOHOL - - SOLVENTS - FLOORS Suitable for all types of floors, even outdoors. They facilitate the overcoming of obstacles. They do not damage or mark floors. Tile floor Tile floor - Asphalt floor Asphalt floor - Resin cement floor Resin cement floor - Not paved floor Not paved floor - Expanded metal floor Expanded metal floor - Floor with chips Floor with chips - Floor with obstacles Floor with obstacles FORCE REQUIRED TO PUSH OR TOW A WHEEL For each load and diameter, the table indicates the force (in daN) needed to push or tow a single wheel at the constant speed of 4 km/h on smooth flooring. For manual handling of a 4-wheeled trolley we recommend diameters that have values < 5 daN, for frequent handling we recommend diameters with values < 3 daN.

Catalogs

Catalog 2023
Catalog 2023
448 Pages
