Brinell hardness tester MHT-3000E

handheldmanualfor stainless steel

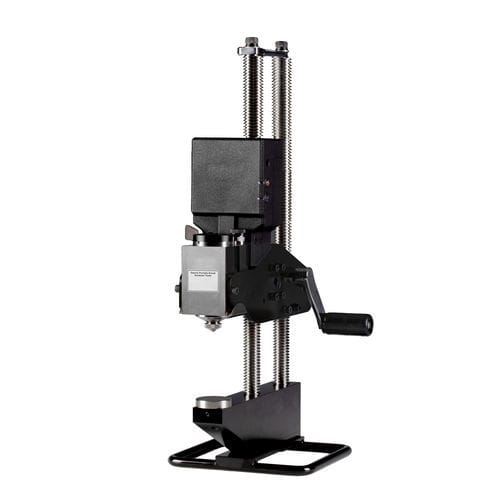

MHT-3000E: Portable Brinell Hardness Tester HB10/3000, Automatic, Battery-Powered, Compliant with ASTM E110, ASTM E10, ISO 6506 MHT-3000E: The Evolution of the Portable Brinell Hardness Tester The MHT-3000E automatic hardness tester represents a significant technological advancement over traditional portable Brinell testers with a manual hydraulic system (such as Brinella, King, and Model 134). Technical Innovations of the MHT-3000E: Automated drive system with electric motor Latest-generation lithium battery power supply Computerized load process control Elimination of manual pump and load bar Applications: The MHT-3000E is ideal for measurements on: Castings and forgings Steel components Non-ferrous metals Medium and large parts after heat treatment Operational Versatility: Usable in any orientation (vertical, horizontal, upside down) Perfect for on-site testing: production lines, construction sites, warehouses Suitable for components that cannot be tested with traditional bench hardness testers This cutting-edge instrument combines the established reliability of the Brinell method with modern automation, ensuring precise and repeatable measurements regardless of the operator. Compliant with Standards: ASTM E110, ASTM E10, ISO 6506. Test Head with Automatic Load Application: 29.420 N (3,000 kg) on a 10mm tungsten carbide ball. Battery life: 400 impressions. Weight: 13.7 kg. Motorized automatic test head with 3,000 kg capacity Standard base: 340 mm useful stroke, 100 mm reach Anvils: flat, spherical, and V-shaped Calibration certificate traceable to UKAS
